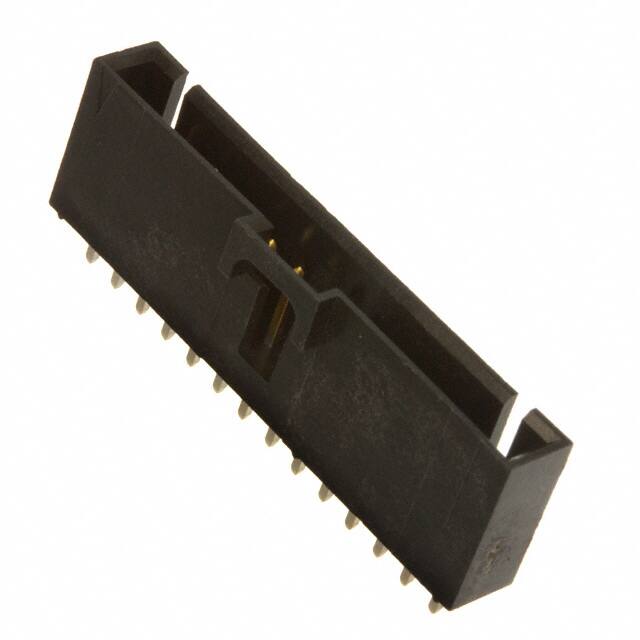

0705430013

Specifications

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Fabrika Tedarik Süresi

5 Weeks

Mixed Contacts

NO

Nominal Gerilim

250V

Ambalaj

Tube

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Din Conformance

NO

Pitch Mating

0.100 2.54mm

Applications

Automotive, General Purpose, Industrial, Medical

Connector Type

Header

Insulation Materials

Polyester, Glass Filled

Iec Conformance

NO

Contact Type

Male Pin

Terminal Adımı

2.54mm

Sıra Sayısı

1

Pozisyon Sayısı

14

Contact Finish Thickness Mating

15.0μin 0.38μm

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

Contact Finish Thickness Post

74.8μin 1.90μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Overall Contact Length

0.470 11.94mm

Seri

SL 70543

Shrouding

Shrouded - 4 Wall

Ul Flammability Code

94V-0

Contact Length Post

0.130 3.30mm

Insulation Height

0.465 11.80mm

ECCN Kodu

EAR99

Contact Finish Post

Tin

Additional Feature

POLARIZED, SHROUDED

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Insulation Color

Black

Mil Conformance

NO

Contact Shape

Square

Filter Feature

NO
