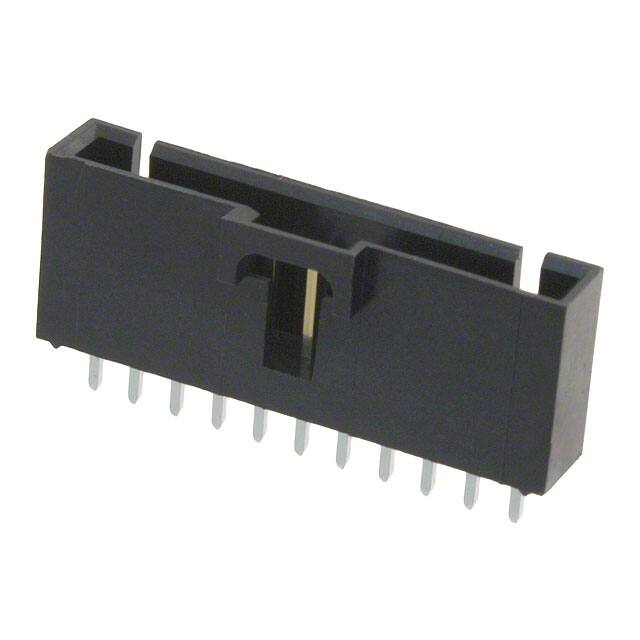

0705430010

Specifications

Contact Finish Post

Tin

Additional Feature

POLARIZED, SHROUDED

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Fastening Type

Latch Holder

Insulation Height

0.465 11.80mm

Contact Length Post

0.130 3.30mm

Seri

SL 70543

Shrouding

Shrouded - 4 Wall

Ul Flammability Code

94V-0

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Mil Conformance

NO

Contact Shape

Square

Applications

Automotive, General Purpose, Industrial, Medical

Connector Type

Header

Iec Conformance

NO

Insulation Materials

Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Ambalaj

Tube

Nominal Gerilim

250V

Number Of Positions Loaded

All

Din Conformance

NO

JESD-609 Kodu

e3

Parça Durumu

Active

Mixed Contacts

NO

Fabrika Tedarik Süresi

8 Weeks

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

Contact Finish Thickness Post

74.8μin 1.90μm

RoHS Durumu

ROHS3 Compliant

Overall Contact Length

0.470 11.94mm

Terminal

Solder

Contact Finish Thickness Mating

15.0μin 0.38μm

Sıra Sayısı

1

Pozisyon Sayısı

11
