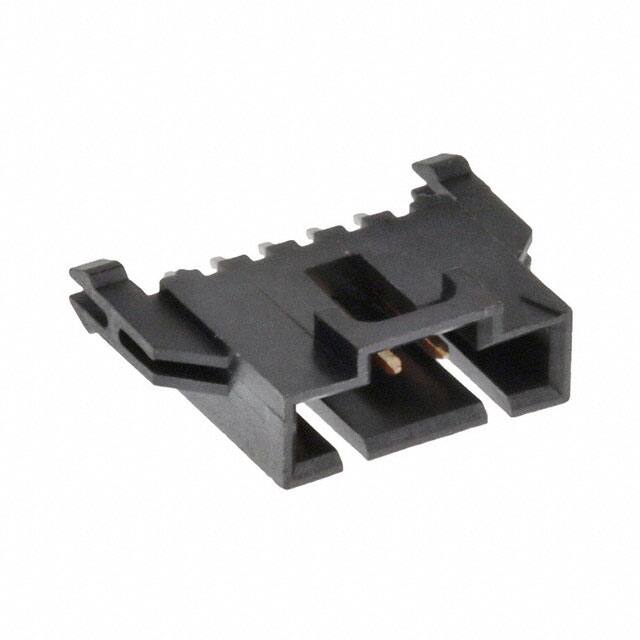

0705410074

Specifications

Filter Feature

NO

Contact Shape

Square

Mil Conformance

NO

Style

Board to Cable/Wire

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.130 3.30mm

Ul Flammability Code

94V-0

Shrouding

Shrouded - 4 Wall

Seri

SL 70541

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Fastening Type

Latch Holder

Contact Finish Post

Tin

Additional Feature

POLARIZED, SHROUDED

Kurşunsuz Kodu

yes

Insulation Height

0.465 11.80mm

Pozisyon Sayısı

5

Sıra Sayısı

1

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Overall Contact Length

0.470 11.94mm

Terminal

Solder

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

Contact Finish Thickness Post

74.8μin 1.90μm

Current Rating Amps

3A

Contact Finish Thickness Mating

30.0μin 0.76μm

Özellikler

Board Lock

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Din Conformance

NO

Nominal Gerilim

250V

Ambalaj

Bulk

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Mixed Contacts

NO

Insulation Materials

Polyester, Glass Filled
