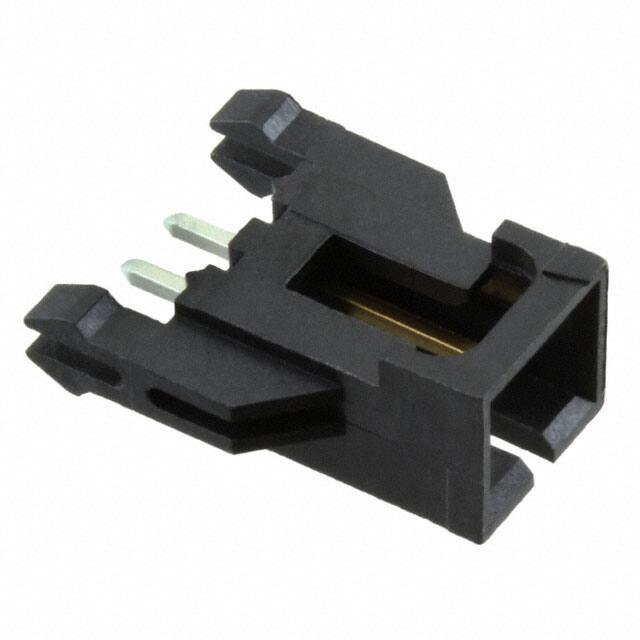

0705410071

Specifications

Filter Feature

NO

Mil Conformance

NO

Contact Shape

Square

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.130 3.30mm

Seri

SL 70541

Ul Flammability Code

94V-0

Shrouding

Shrouded - 4 Wall

Contact Finish Post

Tin

Additional Feature

POLARIZED, SHROUDED

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Insulation Color

Black

Insulation Height

0.465 11.80mm

Kurşunsuz Kodu

yes

Sıra Sayısı

1

Pozisyon Sayısı

2

Contact Type

Male Pin

Contact Materials

Phosphor Bronze

Çalışma Sıcaklığı

-40°C~105°C

Montaj Tipi

Through Hole

Contact Finish Thickness Post

74.8μin 1.90μm

Current Rating Amps

3A

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Overall Contact Length

0.470 11.94mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Özellikler

Board Lock

Nominal Gerilim

250V

Ambalaj

Bulk

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Din Conformance

NO

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Mixed Contacts

NO

Applications

Automotive, General Purpose, Industrial, Medical
