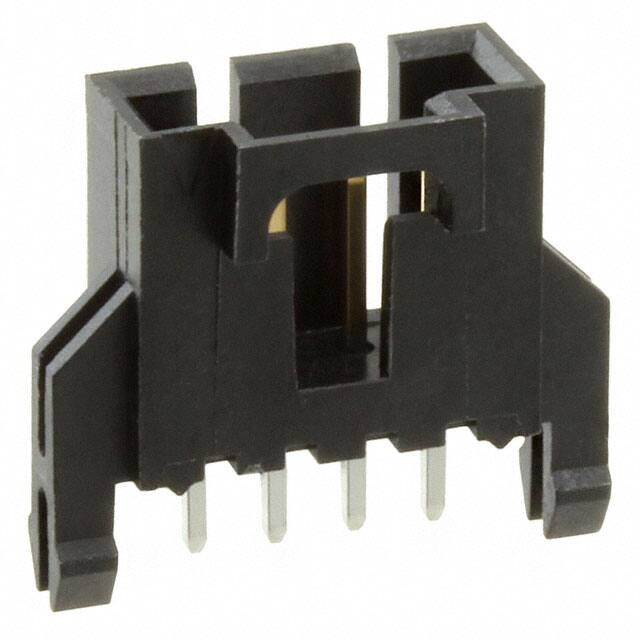

0705410038

Specifications

Contact Length Post

0.130 3.30mm

Shrouding

Shrouded - 4 Wall

Seri

SL 70541

Fastening Type

Latch Holder

Insulation Color

Black

Material Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Insulation Height

0.465 11.80mm

Contact Shape

Square

Style

Board to Cable/Wire

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Ambalaj

Tube

Nominal Gerilim

250V

Fabrika Tedarik Süresi

8 Weeks

Parça Durumu

Active

Insulation Materials

Polyester, Glass Filled

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Medical

Pitch Mating

0.100 2.54mm

Pozisyon Sayısı

4

Sıra Sayısı

1

Contact Type

Male Pin

Terminal

Solder

Overall Contact Length

0.470 11.94mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

74.8μin 1.90μm

Current Rating Amps

3A

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

Özellikler

Board Lock

Contact Finish Thickness Mating

15.0μin 0.38μm
