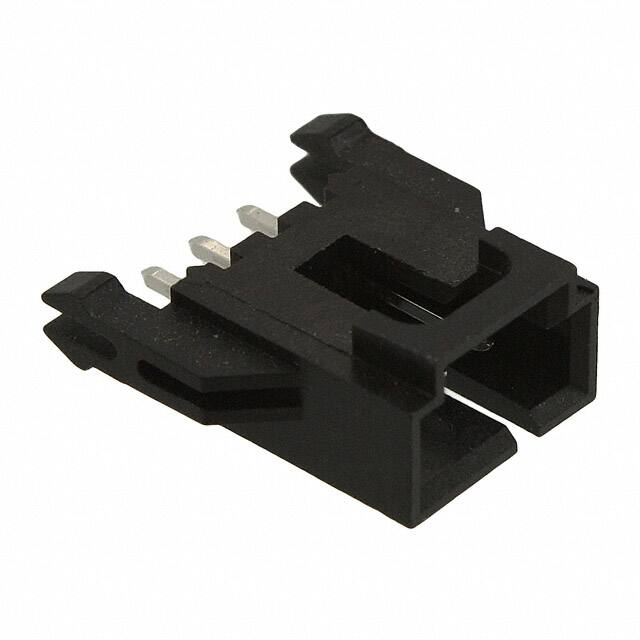

0705410002

Specifications

Contact Shape

Square

Mil Conformance

NO

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Tin

Shrouding

Shrouded - 4 Wall

Ul Flammability Code

94V-0

Seri

SL 70541

Contact Length Post

0.130 3.30mm

Insulation Height

0.465 11.80mm

Insulation Color

Black

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Additional Feature

POLARIZED, SHROUDED

Terminal Adımı

2.54mm

Contact Type

Male Pin

Pozisyon Sayısı

3

Sıra Sayısı

1

Contact Finish Thickness Mating

150.0μin 3.81μm

Özellikler

Board Lock

Overall Contact Length

0.470 11.94mm

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

3A

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Fabrika Tedarik Süresi

8 Weeks

Parça Durumu

Active

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Ambalaj

Tube

Nominal Gerilim

250V

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Insulation Materials

Polyester, Glass Filled
