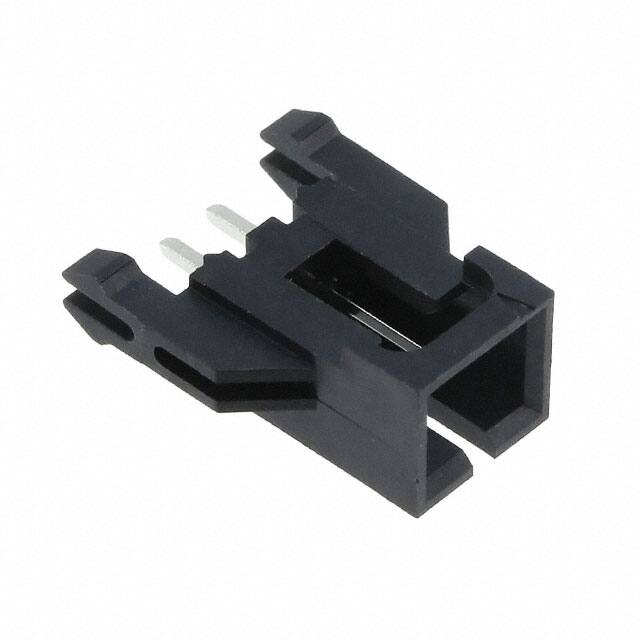

0705410001

Specifications

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Insulation Materials

Polyester, Glass Filled

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Medical

Mixed Contacts

NO

Fabrika Tedarik Süresi

9 Weeks

Parça Durumu

Active

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Ambalaj

Bulk

Nominal Gerilim

250V

Contact Finish Thickness Mating

150.0μin 3.81μm

Özellikler

Board Lock

Overall Contact Length

0.470 11.94mm

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

3A

Contact Materials

Phosphor Bronze

Çalışma Sıcaklığı

-40°C~105°C

Montaj Tipi

Through Hole

Contact Type

Male Pin

Pozisyon Sayısı

2

Sıra Sayısı

1

Insulation Height

0.465 11.80mm

Insulation Color

Black

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Additional Feature

POLARIZED, SHROUDED

Shrouding

Shrouded - 4 Wall

Ul Flammability Code

94V-0

Seri

SL 70541

Contact Length Post

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Tin

Contact Shape

Square

Mil Conformance

NO
