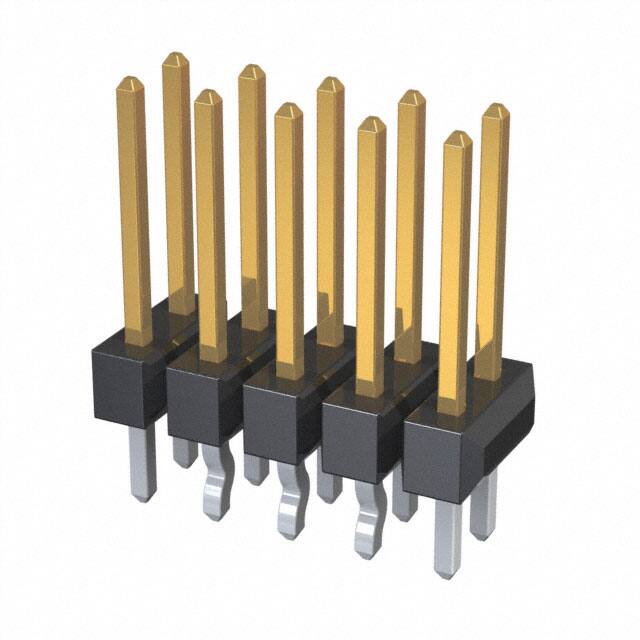

0702871248

Specifications

Contact Length Post

0.125 3.18mm

Max Voltage Rating Dc

250V

Shrouding

Unshrouded

Uzunluk

12.7mm

Seri

C-Grid 70287

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Fastening Type

Push-Pull

Contact Plating

Gold

Contact Finish Post

Tin

Insulation Height

0.090 2.29mm

Depth

5.08mm

Pitch

2.54mm

Contact Shape

Square

Min. Çalışma Sıcaklığı

-40°C

Style

Board to Board or Cable

Contact Lengthmating

0.320 8.13mm

Contact Finish Mating

Gold

Number Of Circuits

8

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.100 (2.54mm)

Material

Brass

Number Of Positions Loaded

All

Ambalaj

Bulk

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Maks. Çalışma Sıcaklığı

120°C

Number Of Contacts

10

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Montaj

Through Hole

Housing Material

Polymer

Connector Type

Header, Breakaway

Pitch Mating

0.100 2.54mm

Renk

Black

Pozisyon Sayısı

10

Sıra Sayısı

2

Orientation

Vertical

Housing Color

Black

Contact Type

Male Pin
