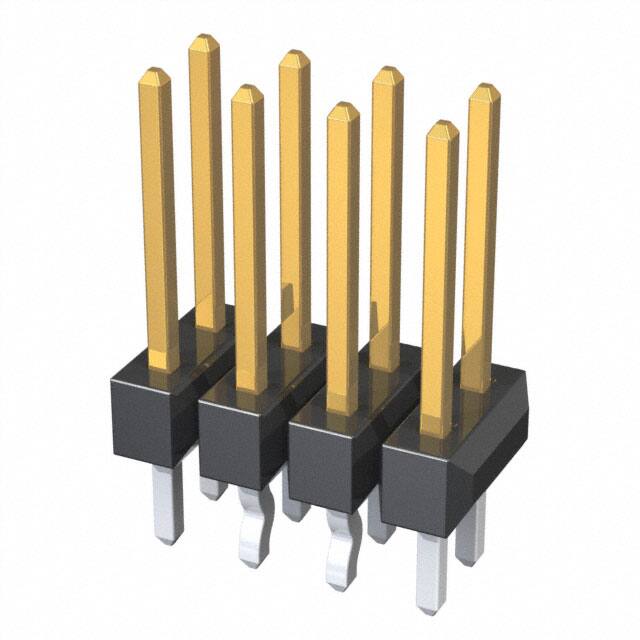

0702871149

Specifications

Terminal

Kinked Pin, Solder

Overall Contact Length

0.535 13.59mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

74.8μin 1.90μm

Montaj Tipi

Through Hole

Contact Materials

Copper Alloy

Contact Finish Thickness Mating

15.0μin 0.38μm

Akım Değeri

3A

Pozisyon Sayısı

8

Orientation

Vertical

Sıra Sayısı

2

Housing Color

Black

Contact Type

Male Pin

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Number Of Contacts

8

Connector Type

Header, Breakaway

Housing Material

Polymer

Montaj

Through Hole

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Renk

Black

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Ambalaj

Bulk

Maks. Çalışma Sıcaklığı

120°C

Fabrika Tedarik Süresi

7 Weeks

Parça Durumu

Active

Style

Board to Board or Cable

Min. Çalışma Sıcaklığı

-40°C

Number Of Circuits

6

Contact Finish Mating

Gold

Contact Lengthmating

0.320 8.13mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material

Brass

Row Spacing Mating

0.100 (2.54mm)

Depth

5.08mm

Contact Shape

Square

Pitch

2.54mm

Contact Plating

Gold

Fastening Type

Push-Pull

Insulation Color

Black
