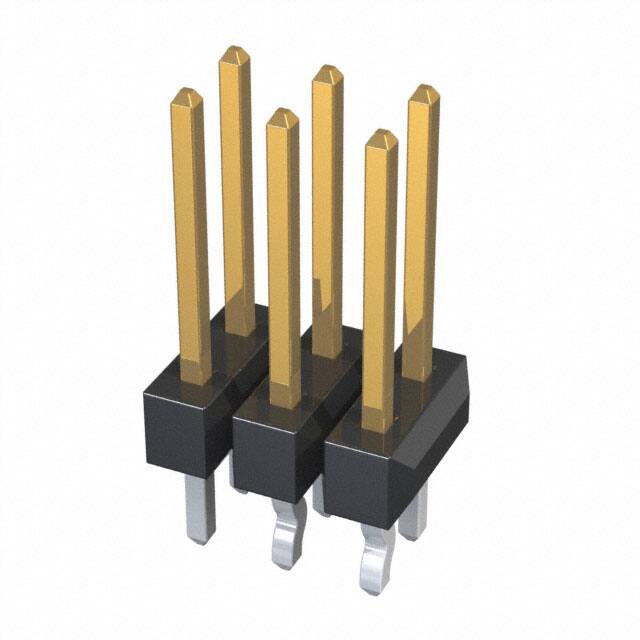

0702871148

Specifications

Connector Type

Header, Breakaway

Housing Material

Polymer

Montaj

Through Hole

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Number Of Contacts

6

Renk

Black

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

Number Of Positions Loaded

All

Maks. Çalışma Sıcaklığı

120°C

Fabrika Tedarik Süresi

7 Weeks

Parça Durumu

Active

Contact Finish Thickness Post

74.8μin 1.90μm

Montaj Tipi

Through Hole

Contact Materials

Copper Alloy

Terminal

Kinked Pin, Solder

Overall Contact Length

0.535 13.59mm

RoHS Durumu

ROHS3 Compliant

Akım Değeri

3A

Contact Finish Thickness Mating

15.0μin 0.38μm

Orientation

Vertical

Sıra Sayısı

2

Pozisyon Sayısı

6

Contact Type

Male Pin

Housing Color

Black

Contact Finish Post

Tin

Fastening Type

Push-Pull

Contact Plating

Gold

Insulation Color

Black

Material Flammability Rating

UL94 V-0

Insulation Height

0.090 2.29mm

Max Voltage Rating Dc

250V

Contact Length Post

0.125 3.18mm

Uzunluk

7.62mm

Seri

C-Grid 70287

Shrouding

Unshrouded

Number Of Circuits

4

Contact Finish Mating

Gold

Contact Lengthmating

0.320 8.13mm
