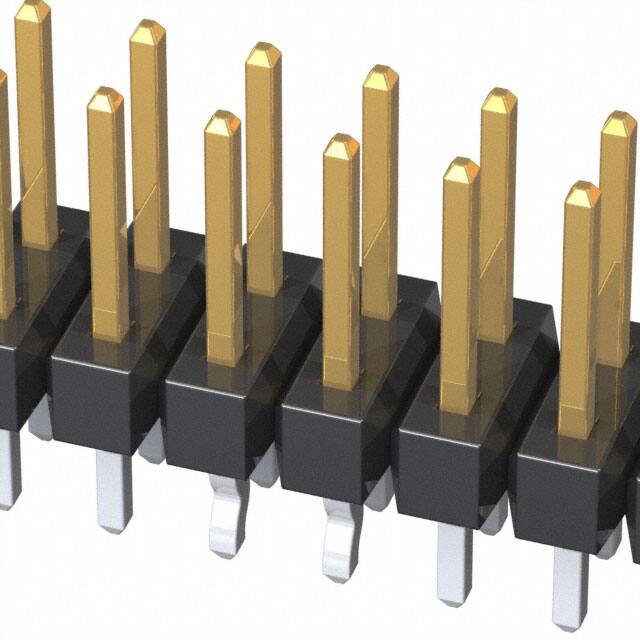

0702871104

Specifications

Insulation Height

0.090 2.29mm

Insulation Color

Black

Fastening Type

Push-Pull

Contact Plating

Gold

Material Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Shrouding

Unshrouded

Uzunluk

20.32mm

Seri

C-Grid 70287

Contact Length Post

0.125 3.18mm

Max Voltage Rating Dc

250V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material

Brass

Row Spacing Mating

0.100 (2.54mm)

Min. Çalışma Sıcaklığı

-40°C

Style

Board to Board or Cable

Number Of Circuits

14

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Contact Shape

Square

Pitch

2.54mm

Depth

5.08mm

Renk

Black

Pitch Mating

0.100 2.54mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Number Of Contacts

16

Connector Type

Header, Breakaway

Montaj

Through Hole

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Housing Material

Thermoplastic

Fabrika Tedarik Süresi

7 Weeks

Maks. Çalışma Sıcaklığı

120°C

Parça Durumu

Active

Number Of Positions Loaded

All

Ambalaj

Bulk

Contact Finish Thickness Mating

15.0μin 0.38μm

Akım Değeri

3A

Overall Contact Length

0.455 11.56mm

Terminal

Kinked Pin, Solder

RoHS Durumu

ROHS3 Compliant
