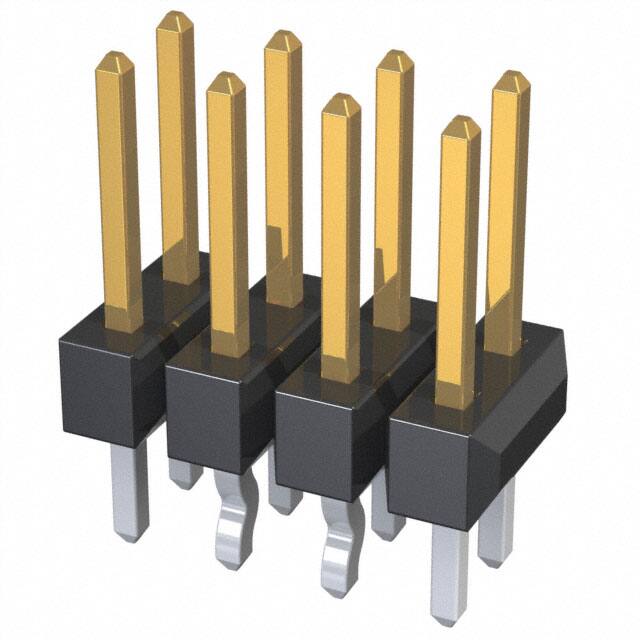

0702871100

Specifications

Contact Finish Post

Tin

Insulation Color

Black

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Insulation Height

0.090 2.29mm

Contact Length Post

0.125 3.18mm

Seri

C-Grid 70287

Shrouding

Unshrouded

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Style

Board to Board or Cable

Row Spacing Mating

0.100 (2.54mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Connector Type

Header, Breakaway

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

8 Weeks

Parça Durumu

Active

Contact Finish Thickness Post

74.8μin 1.90μm

Montaj Tipi

Through Hole

Contact Materials

Copper Alloy

Overall Contact Length

0.455 11.56mm

Terminal

Kinked Pin, Solder

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

15.0μin 0.38μm

Sıra Sayısı

2

Pozisyon Sayısı

8

Contact Type

Male Pin
