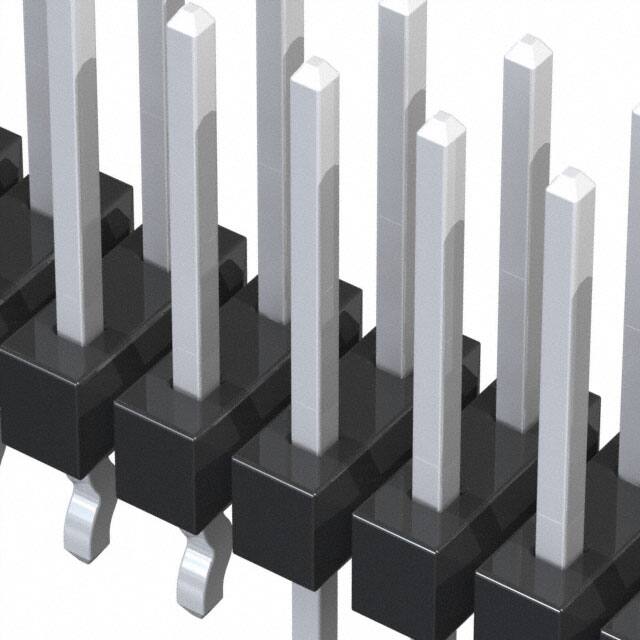

0702871056

Specifications

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Number Of Contacts

18

Connector Type

Header, Breakaway

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Montaj

Through Hole

Housing Material

Polymer

Renk

Black

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Ambalaj

Bulk

Fabrika Tedarik Süresi

7 Weeks

Maks. Çalışma Sıcaklığı

120°C

Parça Durumu

Active

Terminal

Kinked Pin, Solder

Overall Contact Length

0.535 13.59mm

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole

Contact Materials

Copper Alloy

Contact Finish Thickness Mating

150.0μin 3.81μm

Akım Değeri

3A

Pozisyon Sayısı

18

Orientation

Vertical

Sıra Sayısı

2

Housing Color

Black

Contact Type

Male Pin

Insulation Color

Black

Fastening Type

Push-Pull

Contact Plating

Tin

Material Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Insulation Height

0.090 2.29mm

Contact Length Post

0.125 3.18mm

Max Voltage Rating Dc

250V

Shrouding

Unshrouded

Uzunluk

22.86mm

Seri

C-Grid 70287

Min. Çalışma Sıcaklığı

-40°C

Style

Board to Board or Cable

Number Of Circuits

16

Contact Lengthmating

0.320 8.13mm
