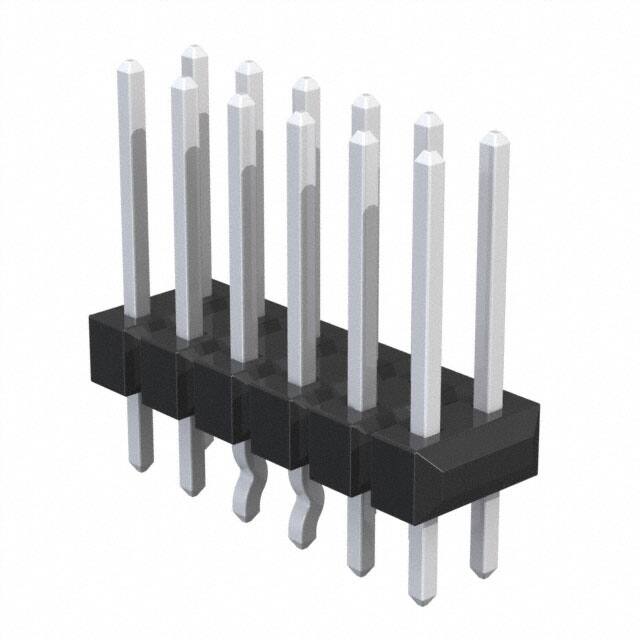

0702871053

Specifications

Max Voltage Rating Dc

250V

Contact Length Post

0.125 3.18mm

Seri

C-Grid 70287

Ul Flammability Code

94V-0

Shrouding

Unshrouded

Fastening Type

Push-Pull

Insulation Height

0.090 2.29mm

Depth

5.08mm

Contact Shape

Square

Contact Lengthmating

0.320 8.13mm

Number Of Circuits

10

Style

Board to Board or Cable

Min. Çalışma Sıcaklığı

-40°C

Material

Brass

Number Of Positions Loaded

All

Mixed Contacts

NO

Fabrika Tedarik Süresi

7 Weeks

Maks. Çalışma Sıcaklığı

120°C

Housing Material

Thermoplastic

Montaj

Through Hole

Sıra Sayısı

2

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Terminal

Kinked Pin, Solder

Contact Finish Thickness Mating

150.0μin 3.81μm

Akım Değeri

3A

Uzunluk

15.24mm

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Filter Feature

NO

Mil Conformance

NO

Contact Finish Mating

Tin

Row Spacing Mating

0.100 (2.54mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

JESD-609 Kodu

e3

Din Conformance

NO

Parça Durumu

Active

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Connector Type

Header, Breakaway
