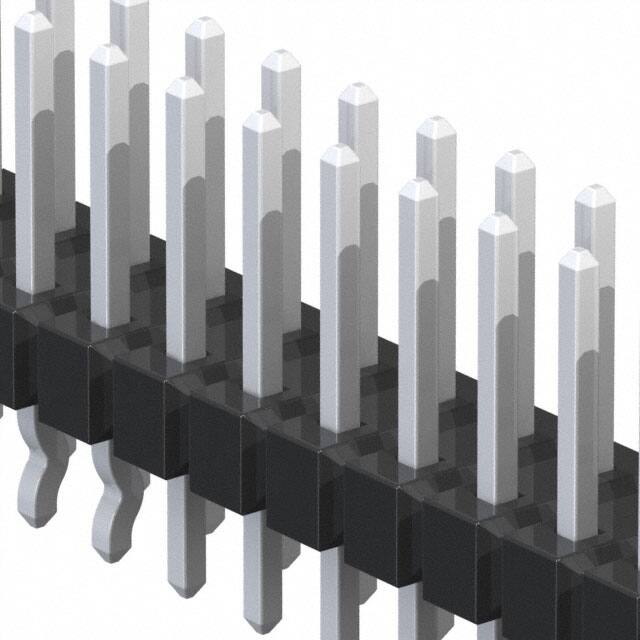

0702871007

Specifications

Akım Değeri

3A

Radyasyon Dayanımı

No

Number Of Contacts

18

RoHS Durumu

ROHS3 Compliant

Pitch

2.54mm

Min. Çalışma Sıcaklığı

-40°C

Fastening Type

Push-Pull

Contact Type

Male Pin

Contact Lengthmating

0.240 6.10mm

Ambalaj

Bulk

Terminal

Kinked Pin, Solder

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Dc

250V

Shrouding

Unshrouded

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Maks. Çalışma Sıcaklığı

120°C

Montaj Tipi

Through Hole

Orientation

Vertical

Contact Finish Thickness Mating

150.0μin 3.81μm

Uzunluk

22.86mm

Contact Plating

Tin

Contact Materials

Copper Alloy

Material

Brass

Contact Length Post

0.125 3.18mm

Insulation Color

Black

Pozisyon Sayısı

18

Number Of Circuits

16

Parça Durumu

Active

Fabrika Tedarik Süresi

7 Weeks

Montaj

Through Hole

Contact Finish Post

Tin

Style

Board to Board or Cable

Housing Material

Polymer

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.090 2.29mm

Depth

5.08mm

Contact Finish Mating

Tin
