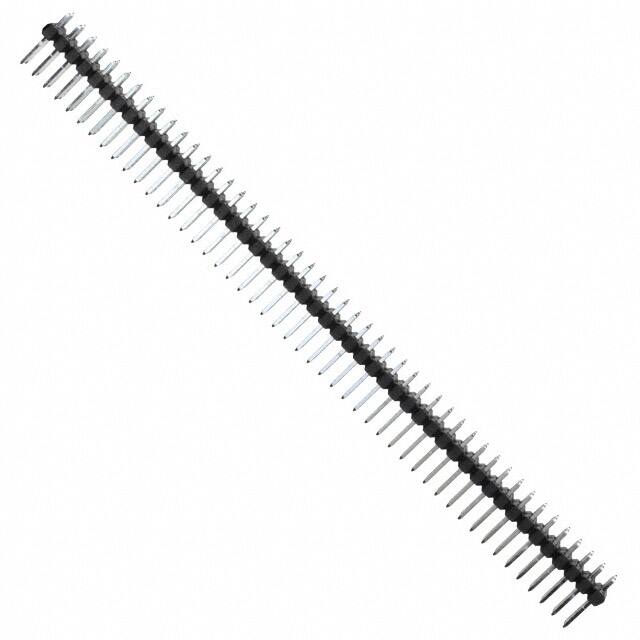

0702800445

Specifications

Filter Feature

NO

Mixed Contacts

NO

Shrouding

Unshrouded

Din Conformance

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Orientation

Vertical

Iec Conformance

NO

Contact Finish Thickness Mating

150.0μin 3.81μm

Contact Materials

Copper Alloy

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Akım Değeri

3A

Fastening Type

Push-Pull

Ambalaj

Bulk

Contact Lengthmating

0.240 6.10mm

Contact Type

Male Pin

Terminal

Solder

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Seri

C-Grid 70280

JESD-609 Kodu

e3

Connector Type

Header, Breakaway

Number Of Positions Loaded

All

Sıra Sayısı

2

Housing Color

Black

Overall Contact Length

0.437 11.10mm

Pitch Mating

0.100 2.54mm

Pozisyon Sayısı

94

Contact Length Post

0.107 2.71mm

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Number Of Circuits

92

Style

Board to Board or Cable

Montaj

Through Hole
