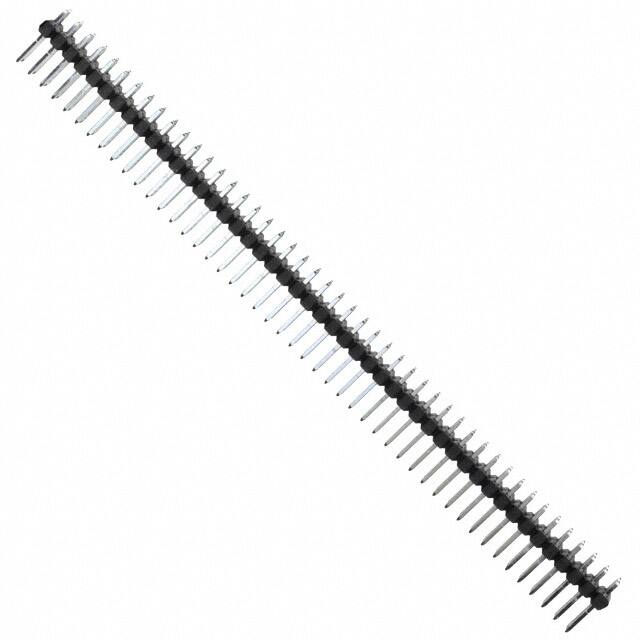

0702800444

Specifications

Connector Type

Header, Breakaway

Renk

Black

Seri

C-Grid 70280

Contact Finish Mating

Tin

Pitch Mating

0.100 2.54mm

Overall Contact Length

0.437 11.10mm

Sıra Sayısı

2

Housing Color

Black

Number Of Positions Loaded

All

Parça Durumu

Active

Number Of Circuits

90

Insulation Color

Black

Pozisyon Sayısı

92

Contact Length Post

0.107 2.71mm

Insulation Height

0.090 2.29mm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Post

Tin

Style

Board to Board or Cable

Montaj

Through Hole

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Shrouding

Unshrouded

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Contact Materials

Copper Alloy

Contact Plating

Tin

Contact Finish Thickness Mating

150.0μin 3.81μm

Orientation

Vertical

Fastening Type

Push-Pull

Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Akım Değeri

3A

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Terminal

Solder

Ambalaj

Bulk

Contact Lengthmating

0.240 6.10mm

Contact Type

Male Pin
