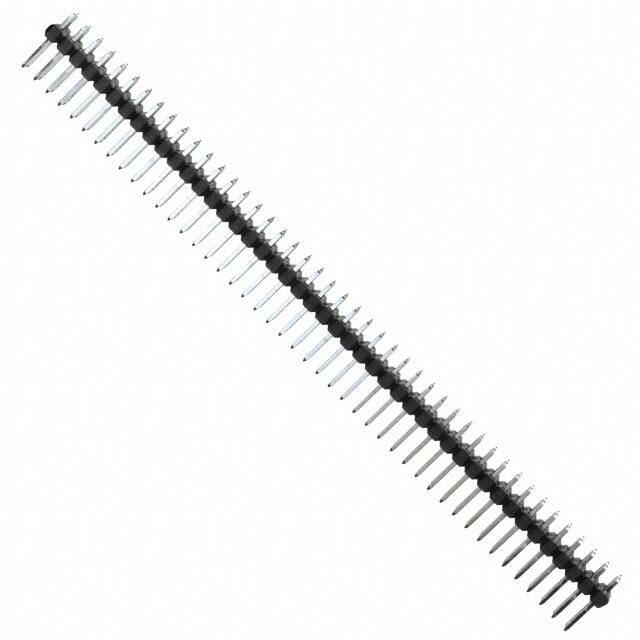

0702800442

Specifications

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Terminal

Solder

Contact Type

Male Pin

Ambalaj

Bulk

Contact Lengthmating

0.240 6.10mm

Fastening Type

Push-Pull

Akım Değeri

3A

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Mil Conformance

NO

Contact Materials

Copper Alloy

Contact Finish Thickness Mating

150.0μin 3.81μm

Iec Conformance

NO

Orientation

Vertical

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Shrouding

Unshrouded

Filter Feature

NO

Mixed Contacts

NO

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.090 2.29mm

Montaj

Through Hole

Style

Board to Board or Cable

Number Of Circuits

86

Parça Durumu

Active

Contact Length Post

0.107 2.71mm

REACH Uyumluluk Kodu

unknown

Ul Flammability Code

94V-0

Pozisyon Sayısı

88

Pitch Mating

0.100 2.54mm

Overall Contact Length

0.437 11.10mm

Housing Color

Black

Sıra Sayısı

2

Number Of Positions Loaded

All

Connector Type

Header, Breakaway

JESD-609 Kodu

e3
