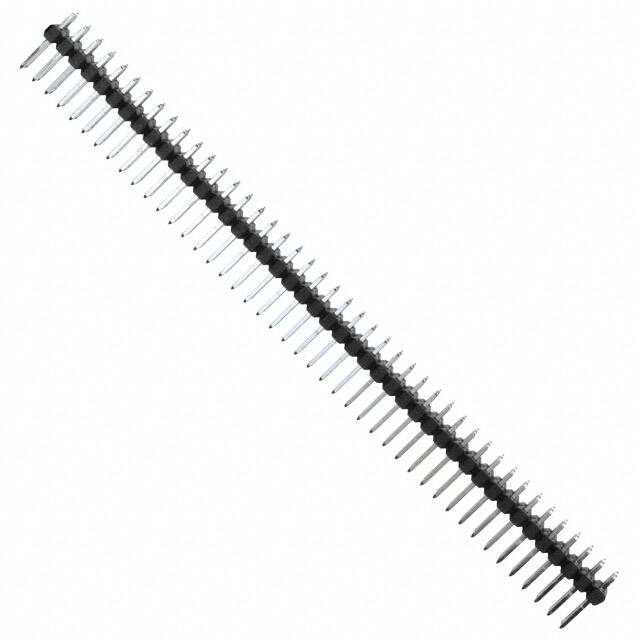

0702800441

Specifications

Orientation

Vertical

Contact Finish Thickness Mating

150.0μin 3.81μm

Iec Conformance

NO

Contact Materials

Copper Alloy

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Din Conformance

NO

Shrouding

Unshrouded

Filter Feature

NO

Mixed Contacts

NO

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Contact Type

Male Pin

Ambalaj

Bulk

Contact Lengthmating

0.240 6.10mm

Terminal

Solder

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Akım Değeri

3A

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Housing Color

Black

Sıra Sayısı

2

Overall Contact Length

0.437 11.10mm

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Seri

C-Grid 70280

Connector Type

Header, Breakaway

JESD-609 Kodu

e3

Montaj

Through Hole

Style

Board to Board or Cable

Insulation Height

0.090 2.29mm

Row Spacing Mating

0.100 (2.54mm)

Contact Length Post

0.107 2.71mm

REACH Uyumluluk Kodu

unknown

Pozisyon Sayısı

86
