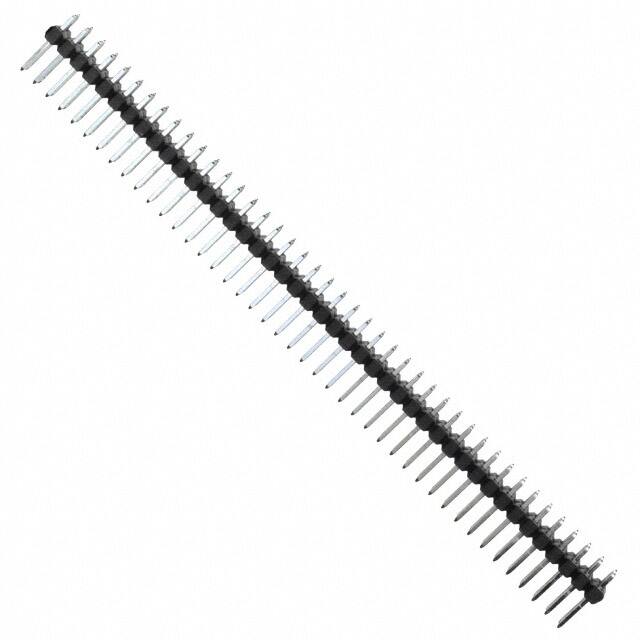

0702800440

Specifications

Parça Durumu

Active

Number Of Circuits

82

Contact Length Post

0.107 2.71mm

REACH Uyumluluk Kodu

unknown

Pozisyon Sayısı

84

Ul Flammability Code

94V-0

Insulation Height

0.090 2.29mm

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Seri

C-Grid 70280

Connector Type

Header, Breakaway

JESD-609 Kodu

e3

Contact Finish Mating

Tin

Overall Contact Length

0.437 11.10mm

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Housing Color

Black

Sıra Sayısı

2

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Akım Değeri

3A

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Contact Type

Male Pin

Ambalaj

Bulk

Contact Lengthmating

0.240 6.10mm

Terminal

Solder

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Filter Feature

NO

Shrouding

Unshrouded

Din Conformance

NO

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Mil Conformance

NO

Contact Materials

Copper Alloy
