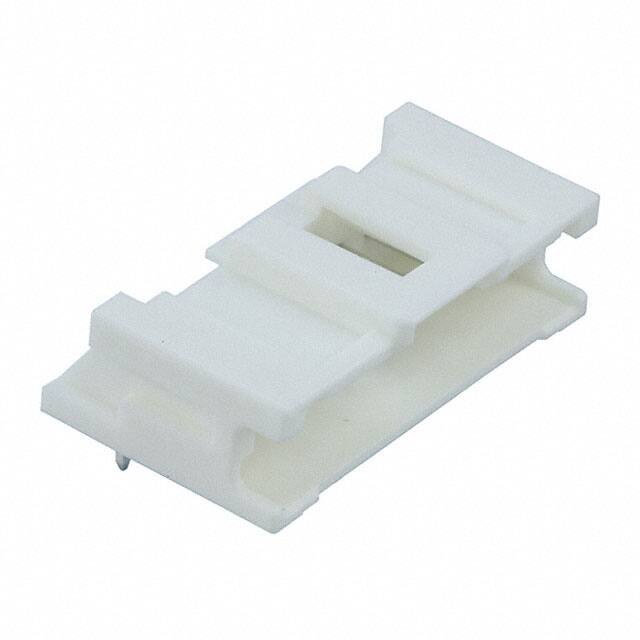

0559350830

Specifications

Contact Materials

Brass

Insulation Resistance

1GOhm

Number Of Contacts

8

Style

Board to Cable/Wire

Min. Çalışma Sıcaklığı

-25°C

Connector Type

Header

Insulation Color

Natural

Shrouding

Shrouded - 4 Wall

Akım Değeri

3A

Orientation

Right Angle

Ambalaj

Tray

Applications

General Purpose, Industrial, Medical

Sıra Sayısı

1

Contact Shape

Square

Montaj

Through Hole

Insulation Height

0.264 6.70mm

Voltage Rated Ac

250V

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole, Right Angle

Contact Finish Mating

Tin

Contact Length Post

0.126 3.20mm

Max Voltage Rating Ac

250V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

MicroClasp 55935

Contact Lengthmating

0.144 3.66mm

Fabrika Tedarik Süresi

20 Weeks

Pitch Mating

0.079 2.00mm

Maks. Çalışma Sıcaklığı

85°C

Number Of Positions Loaded

All

Contact Type

Male Pin

Fastening Type

Latch Holder

Depth

11.75mm

Lead Pitch

2mm

Kurşunsuz Kodu

yes

Parça Durumu

Active

Insulation Materials

Polybutylene Terephthalate (PBT)

Housing Material

Polyester

Uzunluk

20mm

Terminal

Kinked Pin, Solder

Contact Resistance

20mOhm
