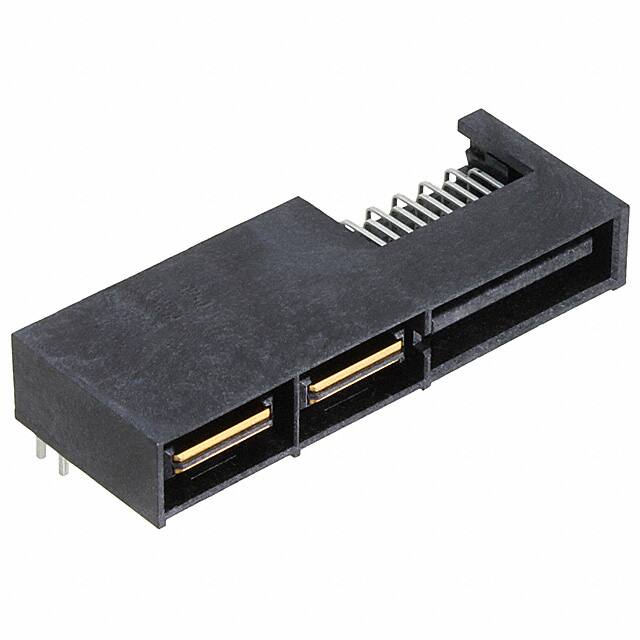

0459854142

Specifications

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Contact Gender

MALE

RoHS Durumu

ROHS3 Compliant

Seri

EXTreme LPHPower 45985

Fabrika Tedarik Süresi

8 Weeks

Flammability Rating

UL94 V-0

Number Of Ports

1

Orientation

Right Angle

Din Conformance

NO

Terminal

Solder

Mixed Contacts

YES

Ul Flammability Code

94V-0

Montaj

Through Hole

Uzunluk

43.78mm

Iec Conformance

NO

Nominal Gerilim

250V

Contact Finish Thickness

30.0μin 0.76μm

Contact Materials

Bronze

Pozisyon Sayısı

28

Filter Feature

NO

Terminal Sayısı

44

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Akım Değeri

30A

Pitch

0.050 1.27mm

Max Voltage Rating Ac

250V

Additional Feature

POLARIZED, SHROUDED

Number Of Positions Loaded

All

Depth

16.28mm

Ambalaj

Tray

Contact Layout Typical

24 Signal, 4 Power

Contact Finish

Gold

Total Number Of Contacts

28

Renk

Black

Radyasyon Dayanımı

No

Housing Material

Polymer

Parça Durumu

Active
