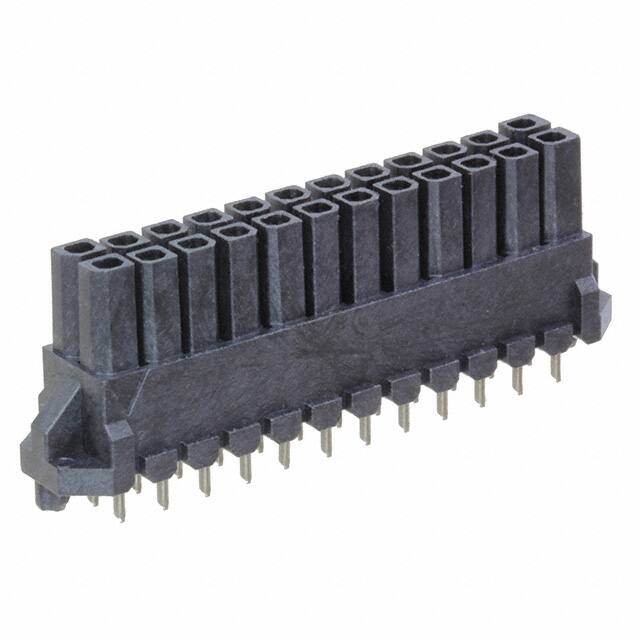

0447692401

Specifications

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Din Conformance

NO

RoHS Durumu

ROHS3 Compliant

Connector Type

Receptacle

Uzunluk

42mm

Fastening Type

Push-Pull

Ul Flammability Code

94V-0

Insulation Height

0.535 13.60mm

Montaj

Through Hole

Orientation

Vertical

Sıra Sayısı

2

Akım Değeri

5A

Pozisyon Sayısı

24

Kurşunsuz Kodu

yes

Contact Type

Female Socket

Housing Color

Black

Contact Shape

Square

Terminal Adımı

3mm

Stack Height Mating

16.86mm

Iec Conformance

NO

Mixed Contacts

NO

Depth

8.4mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polymer

Özellikler

Board Guide

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.118 (3.00mm)

Contact Finish Thickness Post

100.0μin 2.54μm

Nominal Gerilim

250VAC

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Parça Durumu

Active

Applications

General Purpose, Telecommunications

Fabrika Tedarik Süresi

12 Weeks

Contact Length Post

0.134 3.40mm

Terminal

Solder

Style

Board to Board or Cable
