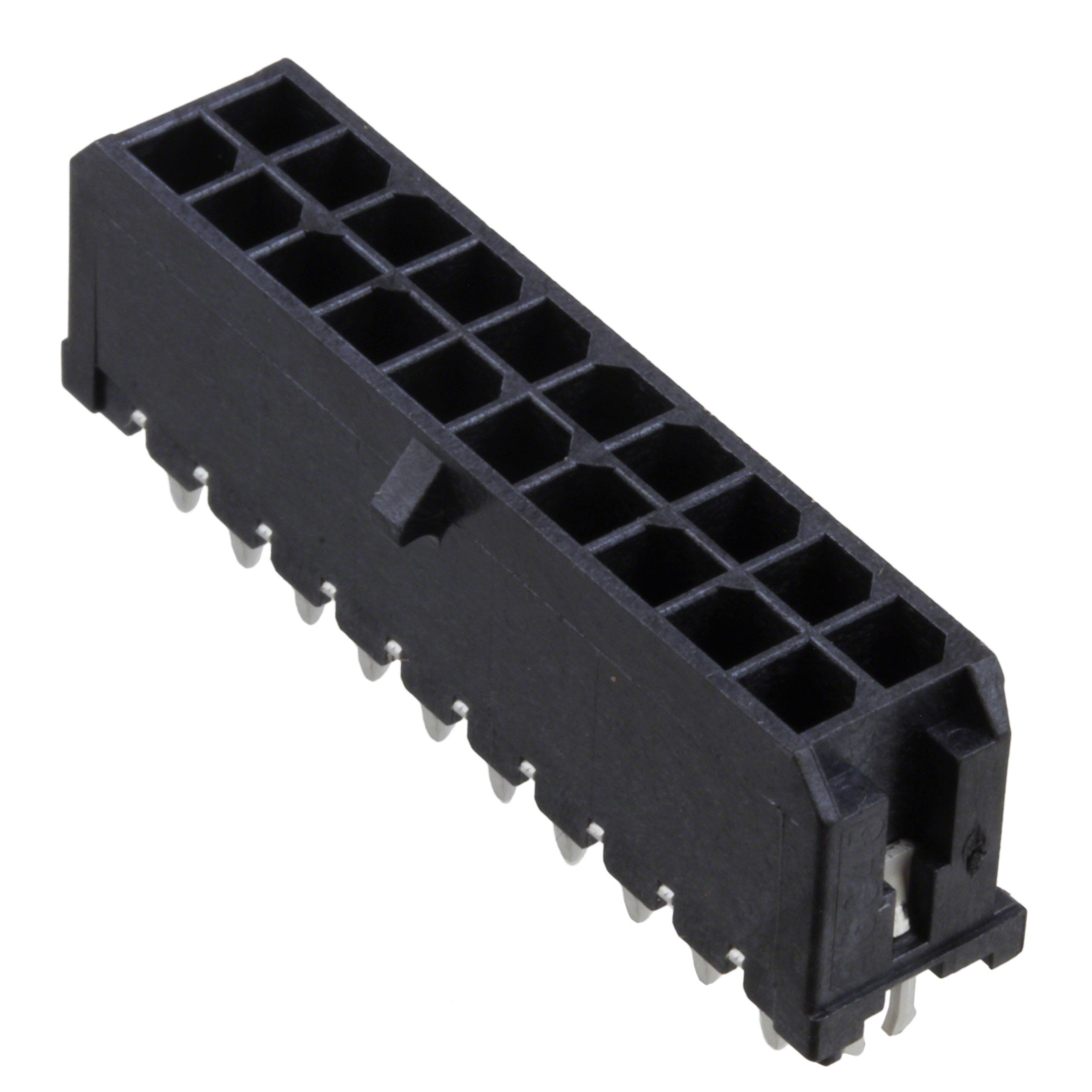

0430452026

Specifications

Sıra Sayısı

2

Row Spacing Mating

0.118 (3.00mm)

Number Of Positions Loaded

All

Shrouding

Shrouded - 4 Wall

Ambalaj

Tray

Pitch Mating

0.118 3.00mm

Contact Type

Male Pin

Contact Shape

Square

Nominal Gerilim

600V

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Min. Çalışma Sıcaklığı

-40°C

ECCN Kodu

EAR99

Insulation Height

0.390 9.91mm

Current Rating Amps

8A

Number Of Contacts

20

Contact Resistance

10mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.125 3.18mm

Uzunluk

34.15mm

Orientation

Vertical

Ul Flammability Code

94V-0

Iec Conformance

NO

Terminal

Kinked Pin, Solder

Max Voltage Rating Ac

250V

Additional Feature

MICRO-FIT 3.0, POLARIZED, SHROUDED

Depth

8.77mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish Post

Tin

Shell Material

POLYETHYLENE

Seri

Micro-Fit 3.0 43045

Din Conformance

NO

Kurşunsuz Kodu

yes

Parça Durumu

Active

Voltage Rated Dc

250V

Filter Feature

NO

Mil Conformance

NO

Montaj

Through Hole

Fastening Type

Locking Ramp

Özellikler

Board Guide, Board Lock
