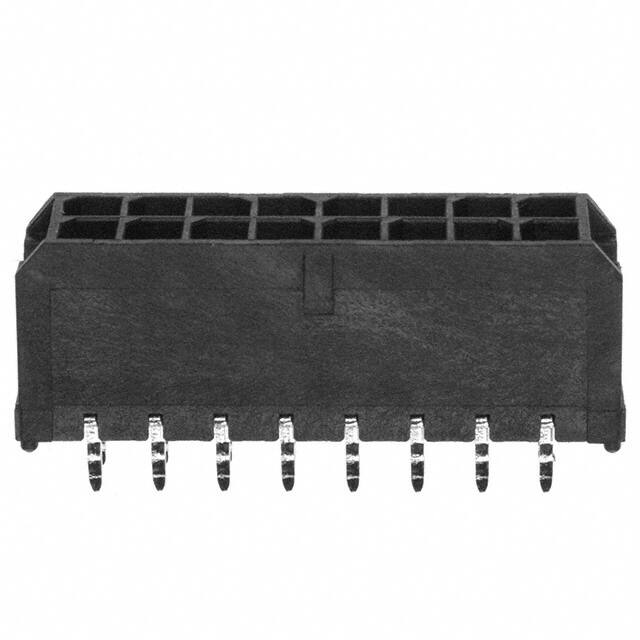

0430451612

Specifications

Parça Durumu

Active

Kurşunsuz Kodu

yes

Din Conformance

NO

Contact Shape

Square

Contact Type

Male Pin

Style

Board to Cable/Wire

Contact Materials

Brass

Özellikler

Board Guide

Montaj Tipi

Through Hole

Fastening Type

Locking Ramp

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Mil Conformance

NO

Nominal Gerilim

600V

Sıra Sayısı

2

Row Spacing Mating

0.118 (3.00mm)

Number Of Positions Loaded

All

Terminal

Kinked Pin, Solder

Iec Conformance

NO

Ul Flammability Code

94V-0

Seri

Micro-Fit 3.0 43045

Shell Material

POLYETHYLENE

Pitch Mating

0.118 3.00mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Ambalaj

Tray

Additional Feature

MICRO-FIT 3.0, POLARIZED, SHROUDED

Shrouding

Shrouded - 4 Wall

Applications

General Purpose, Medical, Military, Telecommunications

Insulation Color

Black

Contact Length Post

0.125 3.18mm

Empty Shell

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

6 Weeks

ECCN Kodu

EAR99

HTS Kodu

8536.69.40.30

Pozisyon Sayısı

16

Current Rating Amps

8A
