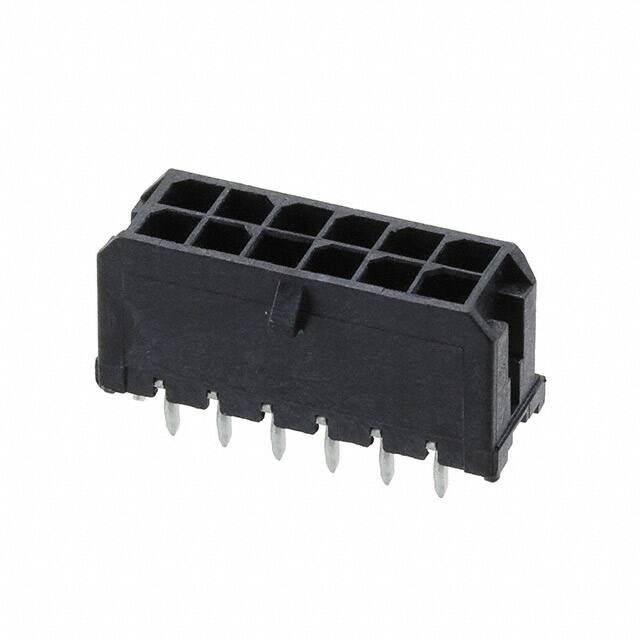

0430451225

Specifications

Shrouding

Shrouded - 4 Wall

Additional Feature

MICRO-FIT 3.0, POLARIZED, SHROUDED

Ambalaj

Tray

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish Post

Tin

Pitch Mating

0.118 3.00mm

Seri

Micro-Fit 3.0 43045

Shell Material

POLYETHYLENE

Ul Flammability Code

94V-0

Terminal

Kinked Pin, Solder

Iec Conformance

NO

Number Of Positions Loaded

All

Row Spacing Mating

0.118 (3.00mm)

Sıra Sayısı

2

Nominal Gerilim

600V

Mil Conformance

NO

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Fastening Type

Locking Ramp

Montaj Tipi

Through Hole

Özellikler

Board Guide, Board Lock

Contact Materials

Brass

Style

Board to Cable/Wire

Contact Type

Male Pin

Contact Shape

Square

Din Conformance

NO

Kurşunsuz Kodu

yes

Parça Durumu

Active

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.390 9.91mm

Contact Finish Mating

Gold

Current Rating Amps

8A

Pozisyon Sayısı

12

HTS Kodu

8536.69.40.30

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

6 Weeks

RoHS Durumu

ROHS3 Compliant

Connector Type

Header

Mixed Contacts

NO

Empty Shell

NO
