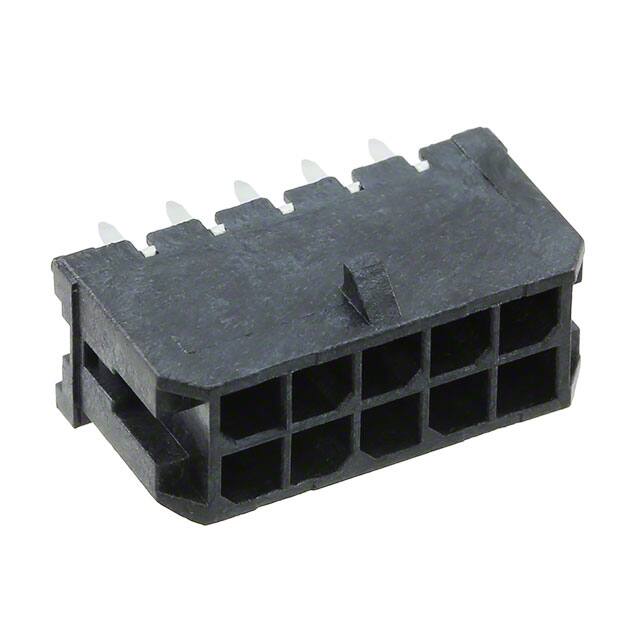

0430451028

Specifications

JESD-609 Kodu

e3

Iec Conformance

NO

Terminal

Solder

Sıra Sayısı

2

Row Spacing Mating

0.118 (3.00mm)

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Ambalaj

Tray

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.118 3.00mm

Seri

Micro-Fit 3.0 43045

Contact Finish Post

Tin

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Din Conformance

NO

Contact Type

Male Pin

Contact Shape

Square

Parça Durumu

Active

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Fastening Type

Locking Ramp

Nominal Gerilim

600V

Mil Conformance

NO

Filter Feature

NO

Contact Materials

Brass

Style

Board to Cable/Wire

Montaj Tipi

Through Hole

Özellikler

Board Guide

Fabrika Tedarik Süresi

7 Weeks

Connector Type

Header

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Terminal Adımı

3mm

Insulation Height

0.390 9.91mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Pozisyon Sayısı

10

Current Rating Amps

8A

Applications

General Purpose, Medical, Military, Telecommunications

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm
