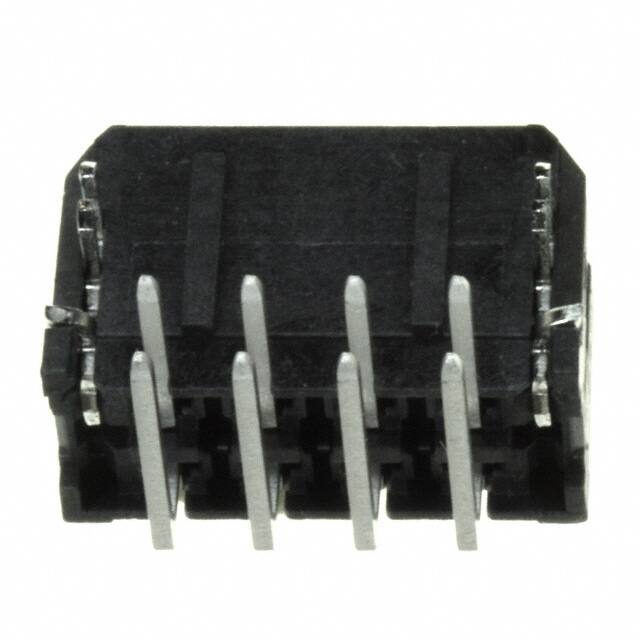

0430450822

Specifications

Number Of Positions Loaded

All

Row Spacing Mating

0.118 (3.00mm)

Sıra Sayısı

2

Terminal

Solder

Iec Conformance

NO

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Pitch Mating

0.118 3.00mm

Seri

Micro-Fit 3.0 43045

Shell Material

POLYETHYLENE

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish Post

Tin

Ambalaj

Tray

Additional Feature

MICRO-FIT 3.0, POLARIZED, SHROUDED

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Din Conformance

NO

Contact Shape

Square

Contact Type

Male Pin

Style

Board to Cable/Wire

Contact Materials

Brass

Özellikler

Board Lock

Montaj Tipi

Through Hole, Right Angle

Fastening Type

Locking Ramp

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Mil Conformance

NO

Nominal Gerilim

600V

Mixed Contacts

NO

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

6 Weeks

Pozisyon Sayısı

8

Current Rating Amps

8A

Contact Finish Mating

Gold

Insulation Height

0.290 7.37mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Applications

General Purpose, Medical, Military, Telecommunications

Contact Finish Thickness Post

100.0μin 2.54μm
