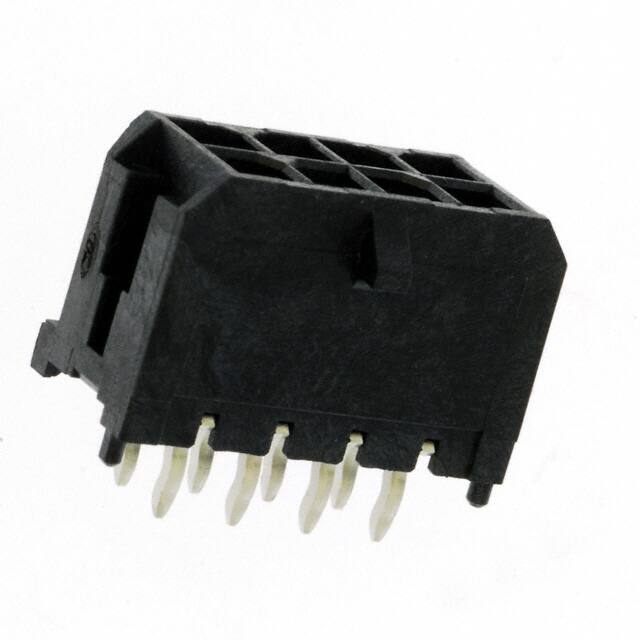

0430450813

Specifications

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Row Spacing Mating

0.118 (3.00mm)

Sıra Sayısı

2

Terminal

Kinked Pin, Solder

Iec Conformance

NO

Ul Flammability Code

94V-0

Ambalaj

Tray

Additional Feature

MICRO-FIT 3.0, POLARIZED

Shrouding

Shrouded - 4 Wall

Shell Material

POLYETHYLENE

Seri

Micro-Fit 3.0 43045

Pitch Mating

0.118 3.00mm

Contact Finish Post

Tin

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Din Conformance

NO

Contact Type

Male Pin

Contact Shape

Square

Parça Durumu

Active

Fastening Type

Locking Ramp

Material Flammability Rating

UL94 V-0

Nominal Gerilim

600V

Mil Conformance

NO

Filter Feature

NO

Style

Board to Cable/Wire

Contact Materials

Brass

Özellikler

Board Guide

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

7 Weeks

Mixed Contacts

NO

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.390 9.91mm

Pozisyon Sayısı

8

Current Rating Amps

8A

Applications

General Purpose, Medical, Military, Telecommunications

Contact Finish Thickness Post

100.0μin 2.54μm

Insulation Color

Black
