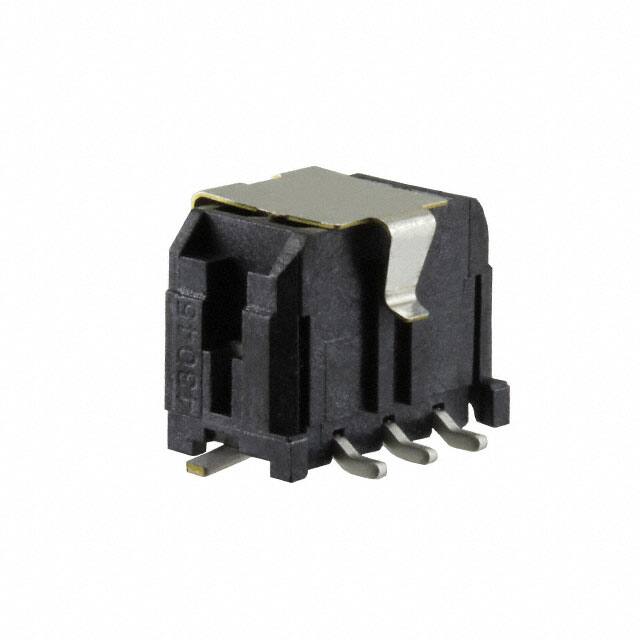

0430450620

Specifications

Fastening Type

Locking Ramp

Material Flammability Rating

UL94 V-0

Nominal Gerilim

600V

Filter Feature

NO

Mil Conformance

NO

Style

Board to Cable/Wire

Contact Materials

Brass

Özellikler

Solder Retention

Montaj Tipi

Surface Mount

Din Conformance

NO

Total Number Of Contacts

6

Contact Shape

Square

Contact Type

Male Pin

Parça Durumu

Active

Kurşunsuz Kodu

yes

Ambalaj

Cut Tape (CT)

Additional Feature

MICRO-FIT 3.0, POLARIZED, SHROUDED

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.118 3.00mm

Seri

Micro-Fit 3.0 43045

Shell Material

POLYETHYLENE

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish Post

Tin

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Row Spacing Mating

0.118 (3.00mm)

Sıra Sayısı

2

Terminal

Solder

Iec Conformance

NO

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Empty Shell

NO

Applications

General Purpose, Medical, Military, Telecommunications

Contact Finish Thickness Post

100.0μin 2.54μm

Insulation Color

Black

Contact Finish Mating

Gold

Contact Finish Thickness Mating

30.0μin 0.76μm

Insulation Height

0.390 9.91mm

Pozisyon Sayısı

6

Current Rating Amps

8A
