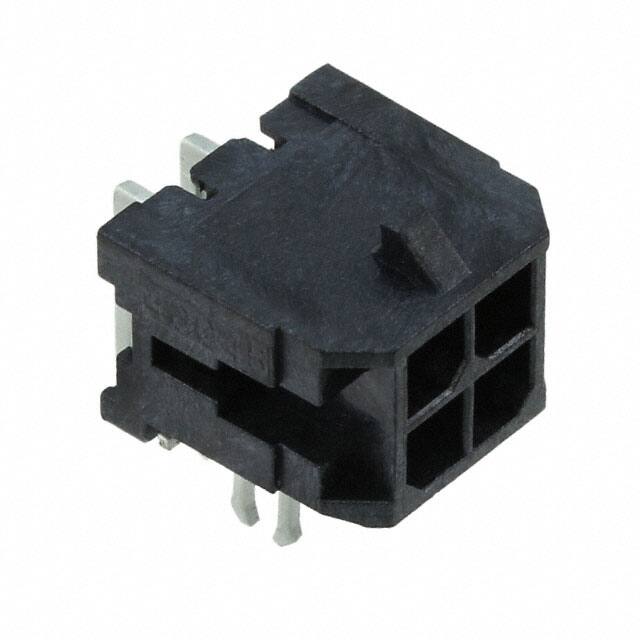

0430450422

Specifications

Din Conformance

NO

Contact Shape

Square

Contact Type

Male Pin

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Fastening Type

Locking Ramp

Nominal Gerilim

600V

Filter Feature

NO

Mil Conformance

NO

Contact Materials

Brass

Style

Board to Cable/Wire

Montaj Tipi

Through Hole, Right Angle

Özellikler

Board Lock

Terminal

Solder

Iec Conformance

NO

Number Of Positions Loaded

All

Row Spacing Mating

0.118 (3.00mm)

Sıra Sayısı

2

Ambalaj

Tray

Shrouding

Shrouded - 4 Wall

Additional Feature

MICRO-FIT 3.0, SHROUDED, POLARIZED

Pitch Mating

0.118 3.00mm

Seri

Micro-Fit 3.0 43045

Shell Material

POLYETHYLENE

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish Post

Tin

Applications

General Purpose, Medical, Military, Telecommunications

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Empty Shell

NO

Contact Length Post

0.125 3.18mm

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

7 Weeks

Connector Type

Header

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Insulation Height

0.290 7.37mm

Contact Finish Thickness Mating

15.0μin 0.38μm
