Volume pricing
- 1+ pcs$2.45
- 10+ pcs$2.31
- 100+ pcs$2.18
- 500+ pcs$2.06
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

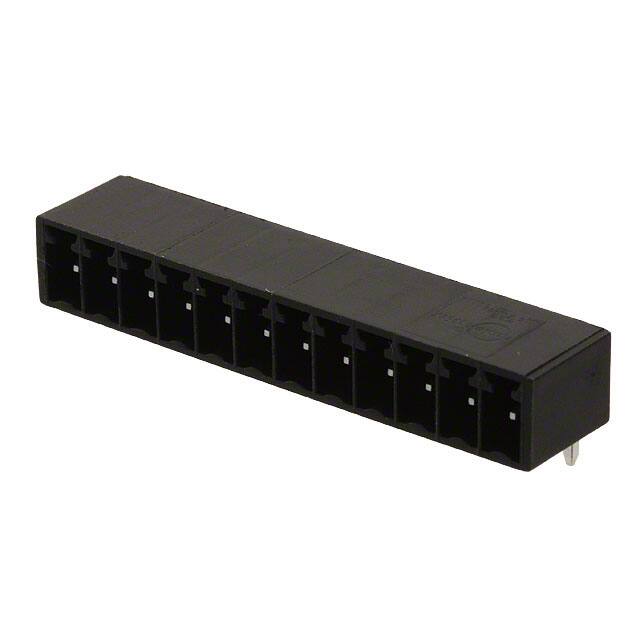

Specifications
- Ambalaj
- Bulk
- Housing Material
- Polyamide (PA66), Nylon 6/6
- Number Of Decks
- 1
- Reach Svhc
- No SVHC
- Header Orientation
- 90°, Right Angle
- Seri
- Eurostyle ESE 39502
- Akım Değeri
- 8A
- Tip
- Header, Male Pins, Shrouded (4 Side)
- Pitch
- 0.138 3.50mm
- Insulation Resistance
- 500MOhm
- Montaj Tipi
- Through Hole
- Material Flammability Rating
- UL94 V-0
- Yükseklik
- 6.9mm
- Kurşunsuz Kodu
- yes
- Renk
- Black
- Number Of Contacts
- 12
- Sıra Sayısı
- 1
- RoHS Durumu
- ROHS3 Compliant
- Contact Resistance
- 8mOhm
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -40°C~105°C
- Kurşunsuz
- Lead Free
- ECCN Kodu
- EAR99
- Contact Mating Finish
- Tin
- Genişlik
- 9.2mm
- Insulation Height
- 0.270 6.86mm
- Montaj
- Through Hole
- Terminal Stili
- Solder
- Nominal Gerilim
- 300V
- Additional Feature
- POLARIZED, SHROUDED
- Number Of Ways
- 12
- Orientation
- Horizontal
- Contact Materials
- Brass
- Contact Tail Length
- 0.140 3.56mm
- Fabrika Tedarik Süresi
- 12 Weeks
- Halogen Free
- Low Halogen
- Flammability Rating
- UL94 V-0
- Number Of Levels
- 1
- HTS Kodu
- 8536.69.40.40
- Elv
- Compliant
