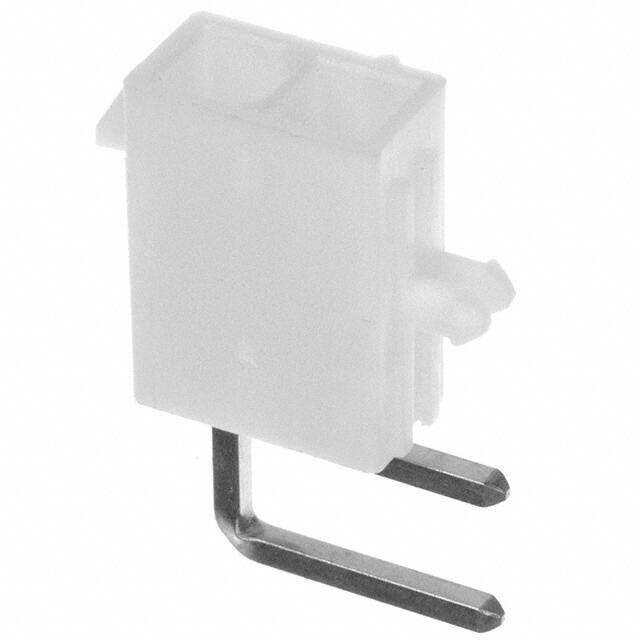

0039301022

Specifications

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Mixed Contacts

NO

Filter Feature

NO

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Insulation Materials

Polyamide (PA66), Nylon 6/6

Özellikler

Board Lock

Mil Conformance

NO

Contact Materials

Brass

Iec Conformance

NO

Contact Finish Thickness Mating

30.0μin 0.76μm

Fastening Type

Locking Ramp

RoHS Durumu

ROHS3 Compliant

Additional Feature

POLARIZED

Applications

General Purpose, Industrial, Telecommunications

Empty Shell

NO

Ambalaj

Bulk

Contact Type

Male Pin

Terminal

Solder

Kurşunsuz Kodu

yes

Seri

Mini-Fit Jr 5569

JESD-609 Kodu

e3

Connector Type

Header

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Contact Finish Thickness Post

100.0μin 2.54μm

Parça Durumu

Active

Fabrika Tedarik Süresi

5 Weeks

Insulation Color

Natural

Pozisyon Sayısı

2

Ul Flammability Code

94V-0

Contact Length Post

0.142 3.60mm

Row Spacing Mating

0.165 (4.20mm)

Insulation Height

0.378 9.60mm

Contact Finish Post

Tin

Style

Board to Cable/Wire
