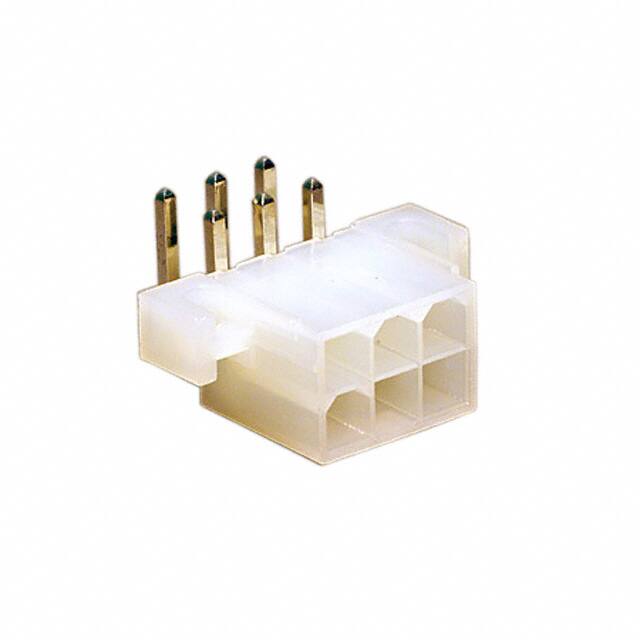

0039291068

Specifications

Contact Type

Male Pin

Ambalaj

Bulk

Terminal

Solder

Empty Shell

NO

Applications

General Purpose, Industrial, Telecommunications

RoHS Durumu

ROHS3 Compliant

Additional Feature

POLARIZED

Fastening Type

Locking Ramp

Contact Finish Thickness Mating

100.0μin 2.54μm

Iec Conformance

NO

Özellikler

Mounting Flange

Mil Conformance

NO

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Din Conformance

NO

Mixed Contacts

NO

Filter Feature

NO

Shrouding

Shrouded - 4 Wall

Insulation Materials

Polyamide (PA66), Nylon 6/6

Material Flammability Rating

UL94 V-2

Montaj Tipi

Through Hole, Right Angle

Style

Board to Cable/Wire

Row Spacing Mating

0.165 (4.20mm)

Insulation Height

0.378 9.60mm

Contact Length Post

0.142 3.60mm

Pozisyon Sayısı

6

Insulation Color

Natural

Parça Durumu

Active

Fabrika Tedarik Süresi

5 Weeks

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Finish Thickness Post

100.0μin 2.54μm

Pitch Mating

0.165 4.20mm

ECCN Kodu

EAR99

Contact Finish Mating

Tin

Seri

Mini-Fit Jr 5569

Kurşunsuz Kodu

yes

Connector Type

Header

JESD-609 Kodu

e3
