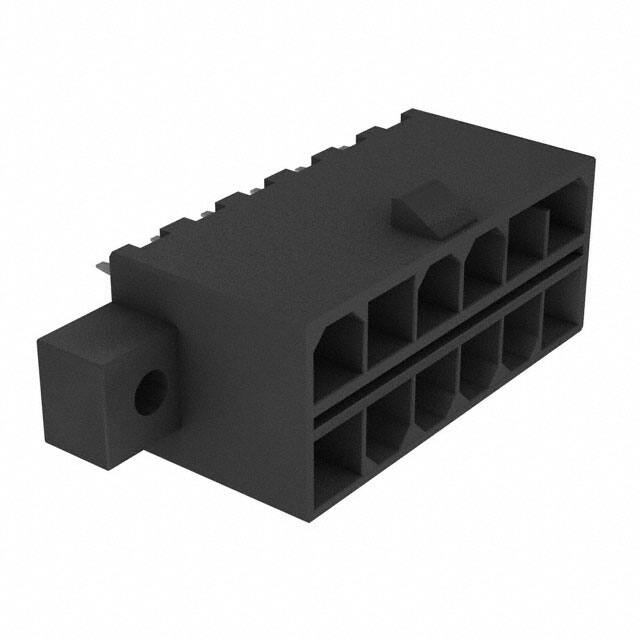

0015977125

Specifications

Fastening Type

Locking Ramp

Number Of Contacts

12

Insulation Materials

Polyester

Applications

Automotive, Industrial, Telecommunications

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

30.0μin 0.76μm

Montaj

Through Hole

Option

GENERAL PURPOSE

Contact Type

Male Pin

Contact Shape

Square

JESD-609 Kodu

e4

Row Spacing Mating

0.217 (5.51mm)

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

9 Weeks

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole

Connector Type

Header

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Gender

Male

Mixed Contacts

NO

Din Conformance

NO

Terminal

Solder

Insulation Height

0.504 12.80mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Seri

Mini-Fit TPA 30069

Insulation Color

Black

Filter Feature

NO

Parça Durumu

Active

Ambalaj

Bulk

Empty Shell

NO

Ul Flammability Code

94V-0

Özellikler

Board Lock

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Materials

Brass Alloy

Pitch Mating

0.165 4.20mm

Mating Information

15-97-5061
