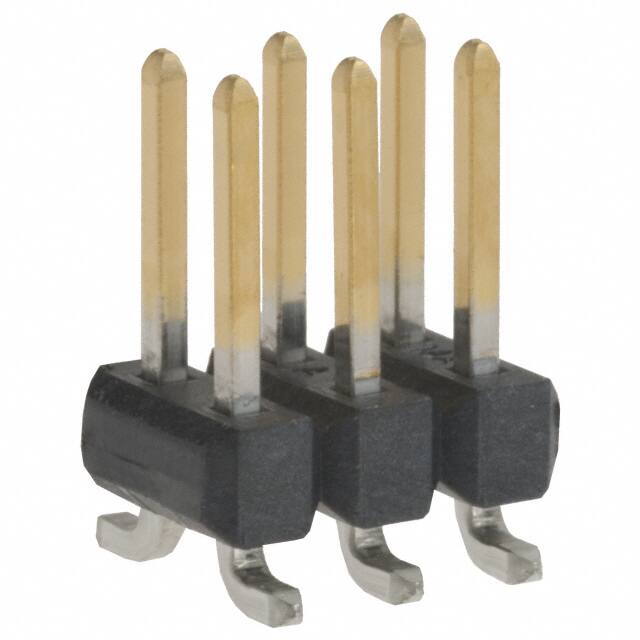

0015916062

Specifications

Kurşunsuz Kodu

yes

Row Spacing Mating

0.100 (2.54mm)

Mating Post Length

6.1mm

Contact Shape

Square

Contact Type

Male Pin

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header, Breakaway

Montaj Tipi

Surface Mount

Mixed Contacts

NO

Fabrika Tedarik Süresi

6 Weeks

Shrouding

Unshrouded

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Akım Değeri

3A

Fastening Type

Push-Pull

ECCN Kodu

EAR99

Contact Lengthmating

0.240 6.10mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Mil Conformance

NO

Housing Material

Polymer

Iec Conformance

NO

Contact Finish Post

Tin

Nominal Gerilim

250V

Sıra Sayısı

2

Contact Gender

Male

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Total Number Of Contacts

6

Pozisyon Sayısı

6

Filter Feature

NO

Insulation Color

Black

Seri

C-Grid 71308

Style

Board to Board or Cable

Insulation Height

0.090 2.29mm

Terminal

Solder

Din Conformance

NO

Ul Flammability Code

94V-0
