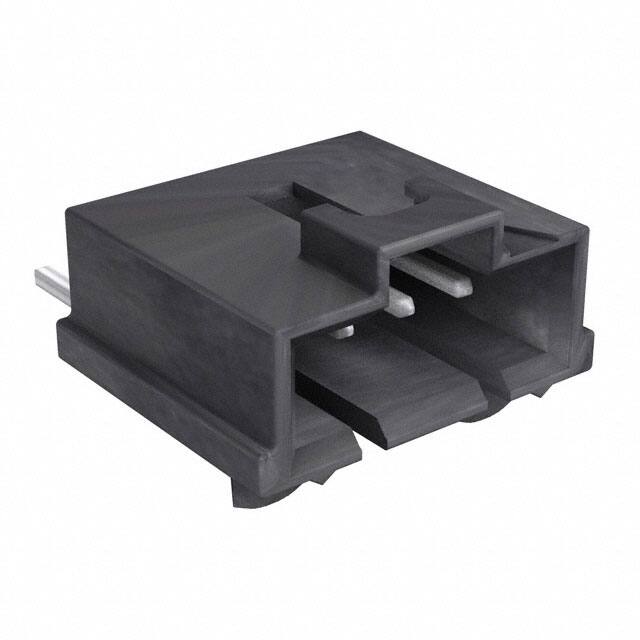

0015913044

Specifications

Terminal

Solder

Pitch Mating

0.100 2.54mm

Fastening Type

Latch Holder

Connector Type

Header

Mixed Contacts

NO

Parça Durumu

Active

Contact Lengthmating

0.240 6.10mm

Additional Feature

SL, POLARIZED

Din Conformance

NO

Number Of Positions Loaded

All

Contact Finish Thickness Mating

74.8μin 1.90μm

Seri

SL 70634

Contact Type

Male Pin

Applications

Automotive, General Purpose, Industrial, Medical

Insulation Color

Black

Insulation Materials

Polyester, Glass Filled

Contact Materials

Phosphor Bronze

ECCN Kodu

EAR99

Pozisyon Sayısı

4

Contact Shape

Square

Filter Feature

NO

Contact Finish Thickness Post

74.8μin 1.90μm

Sıra Sayısı

1

Insulation Height

0.215 5.45mm

Montaj Tipi

Surface Mount, Right Angle

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Contact Finish Mating

Tin

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

5 Weeks

Özellikler

Board Guide

Style

Board to Cable/Wire

Total Number Of Contacts

4
