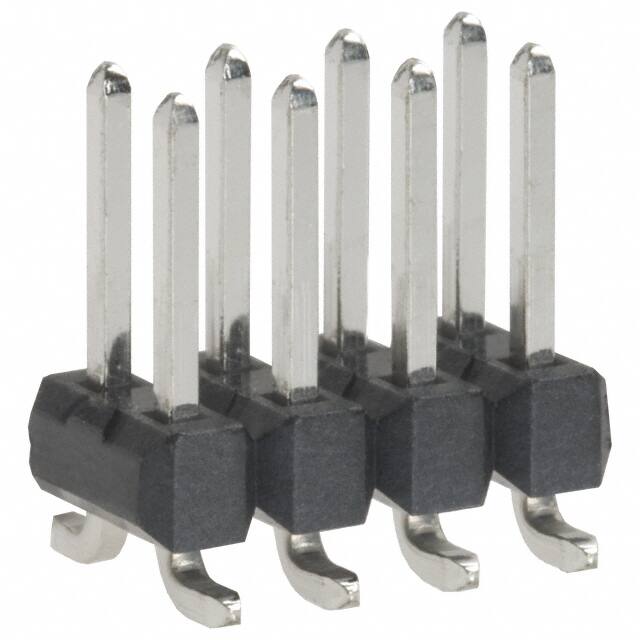

0015912080

Specifications

Total Number Of Contacts

8

Fabrika Tedarik Süresi

7 Weeks

Style

Board to Board or Cable

Shrouding

Unshrouded

RoHS Durumu

ROHS3 Compliant

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Iec Conformance

NO

Contact Finish Mating

Tin

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Sıra Sayısı

2

Insulation Height

0.090 2.29mm

Montaj Tipi

Surface Mount

Filter Feature

NO

Contact Finish Thickness Post

150.0μin 3.81μm

Pozisyon Sayısı

8

Contact Shape

Square

Row Spacing Mating

0.100 (2.54mm)

Ul Flammability Code

94V-0

Contact Materials

Copper Alloy

JESD-609 Kodu

e3

Insulation Color

Black

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Number Of Positions Loaded

All

Contact Finish Thickness Mating

150.0μin 3.81μm

Seri

C-Grid 71308

Contact Type

Male Pin

Additional Feature

STACKABLE

Din Conformance

NO

Mixed Contacts

NO

Parça Durumu

Active

Contact Lengthmating

0.240 6.10mm

Terminal

Solder

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Connector Type

Header, Breakaway
