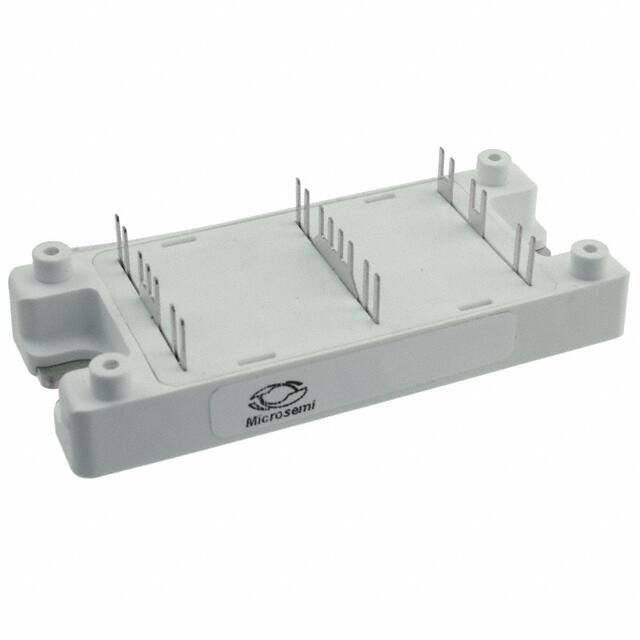

APTGT75SK120TG

Specifications

Temel Ürün No

APTGT75

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~150°C TJ

JESD-609 Kodu

e1

Vceon Max Vge Ic

2.1V @ 15V, 75A

Maks. Çalışma Sıcaklığı

+ 125 C

Power Max

357W

Pin Sayısı

20

Voltage Collector Emitter Breakdown Max

1200V

Max Power Dissipation

357W

Fabrika Paket Adedi

1

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

36 Weeks

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo Max

1.2 kV

RoHS

Details

Montaj

Chassis Mount, Screw

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Input

Standard

Collectoremitter Saturation Voltage

1.7 V

Minimum Operating Temperature

- 40 C

Continuous Collector Current At25 C

110 A

Birim Ağırlık

3.880136 oz

Continuous Collector Current

110

Gateemitter Leakage Current

400 nA

Montaj Stili

Chassis Mount

Terminal Sayısı

12

Number Of Elements

1

Case Connection

ISOLATED

Currentcollector Ic Max

110 A

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Input Capacitance

5.34nF

Terminal Formu

UNSPECIFIED

Current Collector Cutoff Max

250μA

Collectoremitter Breakdown Voltage

1.2kV

Transistor Element Material

SILICON

Maximum Gate Emitter Voltage

20 V

Input Capacitance Cies Vce

5.34nF @ 25V

Kılıf / Paket

SP4

Lifecycle Status

IN PRODUCTION (Last Updated: 3 weeks ago)
