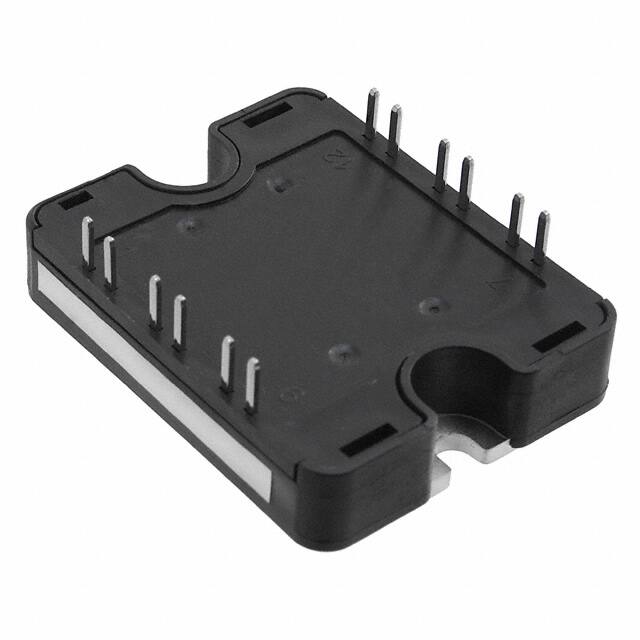

APTGT75DA60T1G

Specifications

Input

Standard

RoHS

Details

Montaj

Chassis Mount, Screw

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Collector Emitter Voltage Vceo Max

600 V

Ntc Thermistor

Yes

Continuous Collector Current

100

Birim Ağırlık

2.821917 oz

Continuous Collector Current At25 C

100 A

Minimum Operating Temperature

- 40 C

Collectoremitter Saturation Voltage

1.5 V

Terminal Sayısı

12

Montaj Stili

Chassis Mount

Gateemitter Leakage Current

600 nA

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Currentcollector Ic Max

100 A

Case Connection

ISOLATED

Number Of Elements

1

JESD-609 Kodu

e1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~175°C TJ

Temel Ürün No

APTGT75

Vceon Max Vge Ic

1.9V @ 15V, 75A

ECCN Kodu

EAR99

Fabrika Paket Adedi

1

Max Power Dissipation

250W

Power Max

250W

Pin Sayısı

1

Voltage Collector Emitter Breakdown Max

600 V

Maks. Çalışma Sıcaklığı

+ 100 C

Fabrika Tedarik Süresi

36 Weeks

Pd Power Dissipation

250 W

Polaritychannel Type

N-CHANNEL

RoHS Durumu

RoHS Compliant

Turn On Time

170 ns

Qualification Status

Not Qualified

Terminal Pozisyonu

UPPER

Max Collector Current

100A

Turn Off Timenom Toff

310 ns

Montaj Tipi

Chassis Mount
