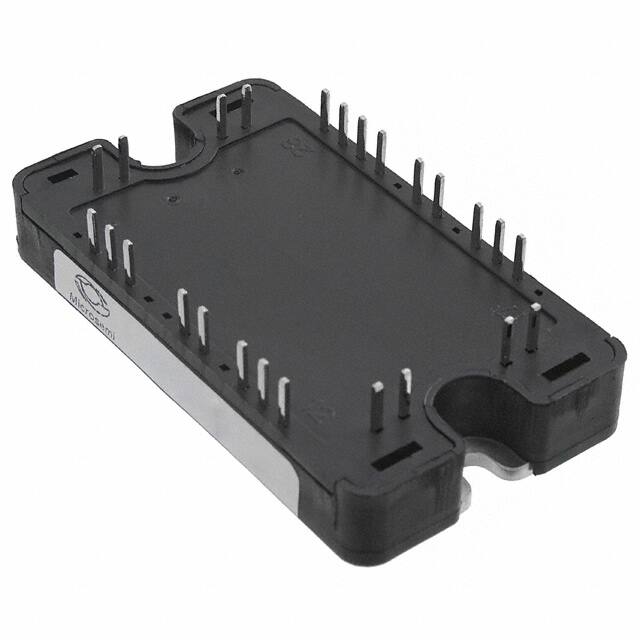

APTGT50DDA120T3G

Specifications

Max Junction Temperature Tj

175 °C

Rohs Code

Yes

Fabrika Tedarik Süresi

36 Weeks

Package Style

FLANGE MOUNT

Yüzey Montaj

NO

Maks. Çalışma Sıcaklığı

+ 125 C

Max Power Dissipation

270W

Fabrika Paket Adedi

1

Power Max

270W

Voltage Collector Emitter Breakdown Max

1200V

Pin Sayısı

32

Turn Off Delay Time

420 ns

ECCN Kodu

EAR99

Element Configuration

Dual

Vceon Max Vge Ic

2.1V @ 15V, 50A

Turnoff Timenom Toff

610 ns

Turn On Delay Time

90 ns

Schedule B

8541290080

Package Description

FLANGE MOUNT, R-XUFM-X25

Temel Ürün No

APTGT50

Çalışma Sıcaklığı

-40°C~175°C TJ

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

compliant

Yükseklik

12.1 mm

JESD-609 Kodu

e1

Terminal Kaplaması

TIN SILVER COPPER

Currentcollector Ic Max

75 A

Number Of Elements

2

Case Connection

ISOLATED

Number Of Terminals

25

Package Body Material

UNSPECIFIED

Gateemitter Leakage Current

400 nA

Montaj Stili

Chassis Mount

Terminal Sayısı

25

Part Life Cycle Code

Active

Collectoremitter Saturation Voltage

1.7 V

Minimum Operating Temperature

- 40 C

Continuous Collector Current At25 C

75 A

Continuous Collector Current

75

Birim Ağırlık

3.880136 oz
