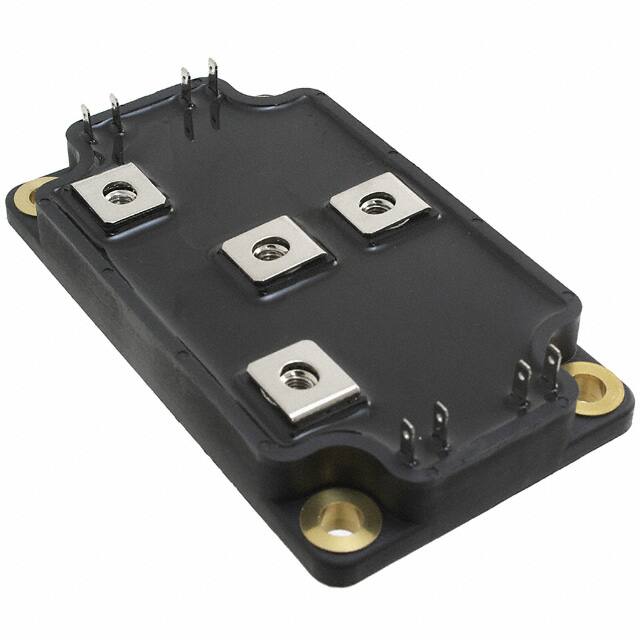

APTGT300TL60G

Specifications

RoHS

Details

Montaj

Chassis Mount, Screw

Input

Standard

Collector Emitter Voltage Vceo Max

600 V

Ntc Thermistor

No

Birim Ağırlık

3.880136 oz

Continuous Collector Current

400

Continuous Collector Current At25 C

400 A

Minimum Operating Temperature

- 40 C

Collectoremitter Saturation Voltage

1.5 V

Terminal Sayısı

12

Montaj Stili

Chassis Mount

Gateemitter Leakage Current

800 nA

Number Of Elements

4

Case Connection

ISOLATED

Currentcollector Ic Max

400 A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~175°C TJ

Temel Ürün No

APTGT300

Turn On Delay Time

115 ns

Vceon Max Vge Ic

1.9V @ 15V, 300A

ECCN Kodu

EAR99

Turn Off Delay Time

225 ns

Voltage Collector Emitter Breakdown Max

600 V

Pin Sayısı

11

Power Max

935W

Fabrika Paket Adedi

1

Max Power Dissipation

935W

Maks. Çalışma Sıcaklığı

+ 100 C

Fabrika Tedarik Süresi

36 Weeks

Polaritychannel Type

N-CHANNEL

Pd Power Dissipation

935 W

Turn On Time

180 ns

RoHS Durumu

RoHS Compliant

Terminal Pozisyonu

UPPER

Jesd30 Code

R-XUFM-X12

Turn Off Timenom Toff

370 ns

Max Collector Current

400A

Gateemitter Voltagemax

20V

Montaj Tipi

Chassis Mount
