Specifications
- Terminal Formu
- UNSPECIFIED
- Input Capacitance
- 24nF
- Current Collector Cutoff Max
- 350μA
- Ihs Manufacturer
- MICROSEMI CORP
- Collectoremitter Breakdown Voltage
- 600V
- Lifecycle Status
- Production (Last Updated: 2 months ago)
- Kılıf / Paket
- SP6
- Maximum Gate Emitter Voltage
- 20 V
- Input Capacitance Cies Vce
- 24nF @ 25V
- Transistor Element Material
- SILICON
- Reflow Temperaturemax S
- NOT SPECIFIED
- Paket
- Tube
- Üretici Parça No

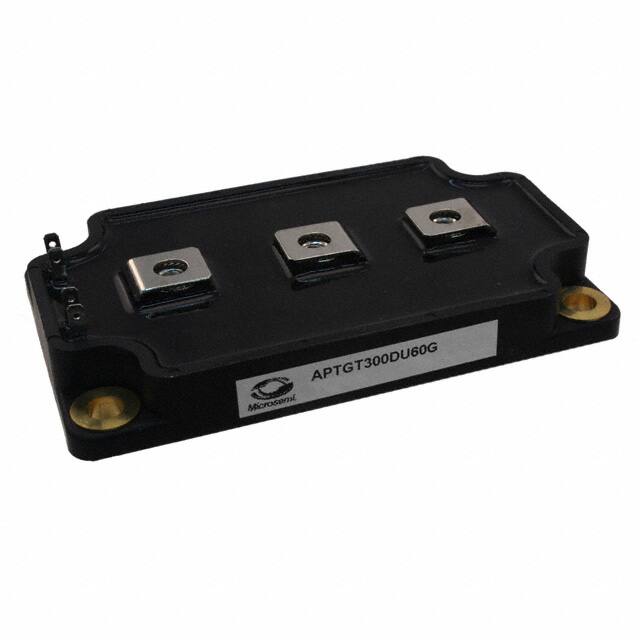

- APTGT300DU60G
- Ambalaj
- Tube
- Min. Çalışma Sıcaklığı
- -40 °C
- Transistor Application
- POWER CONTROL
- Igbt Type
- Trench Field Stop
- Additional Feature
- AVALANCHE RATED
- Turnon Timenom Ton
- 170 ns
- Risk Rank
- 5.22
- Pin Sayısı
- 7
- Yayın Yılı
- 2006
- Package Shape
- RECTANGULAR
- Ürün Durumu
- Active
- Parça Durumu
- Active
- Operating Temperaturemax
- 175 °C
- RoHS Durumu
- RoHS Compliant
- Turn On Time
- 170 ns
- Pd Power Dissipation
- 1.15 kW
- Polaritychannel Type
- N-CHANNEL
- Montaj Tipi
- Chassis Mount
- Qualification Status
- Not Qualified
- Terminal Pozisyonu
- UPPER
- Jesd30 Code
- R-XUFM-X7
- Turn Off Timenom Toff
- 320 ns
- Max Collector Current
- 430A
- Tedarikçi Cihaz Paketi
- SP6
- Configuration
- Dual, Common Source
- Maks. Çalışma Sıcaklığı
- 175 °C
- Kurşunsuz Kodu
- yes
