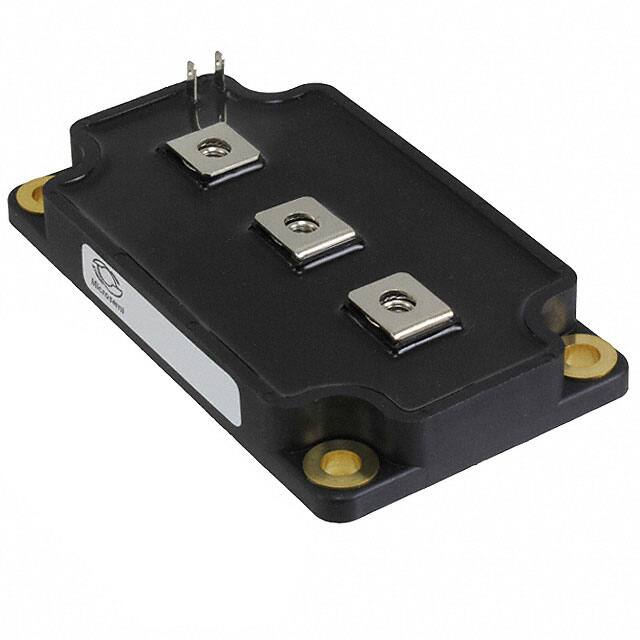

APTGT150SK120G

Specifications

Minimum Operating Temperature

- 40 C

Continuous Collector Current At25 C

220 A

Fabrika Paket Adedi

1

Voltage Collector Emitter Breakdown Max

1200V

Input Capacitance

10.7nF

Terminal Sayısı

5

Turn Off Timenom Toff

610 ns

Additional Feature

AVALANCHE RATED

Power Max

690W

Min. Çalışma Sıcaklığı

-40 °C

Configuration

Single

Transistor Element Material

SILICON

Çalışma Sıcaklığı

-40°C~150°C TJ

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

36 Weeks

ECCN Kodu

EAR99

Ambalaj

Tube

Terminal Pozisyonu

UPPER

Pd Power Dissipation

690 W

Terminal Kaplaması

TIN SILVER COPPER

Collector Emitter Voltage Vceo Max

1.2 kV

Temel Ürün No

APTGT150

Input Capacitance Cies Vce

10.7nF @ 25V

Gateemitter Leakage Current

400 nA

Kurşunsuz Kodu

yes

Max Collector Current

220A

Input

Standard

Currentcollector Ic Max

220 A

Ürün Durumu

Active

Birim Ağırlık

3.880136 oz

Kılıf / Paket

SP6

Collector Emitter Voltage Vceo

1.2kV

Ntc Thermistor

No

Transistor Application

POWER CONTROL

Continuous Collector Current

220

Number Of Elements

1

Montaj Stili

Chassis Mount

Montaj

Chassis Mount, Screw

Vceon Max Vge Ic

2.1V @ 15V, 150A

Terminal Formu

UNSPECIFIED
