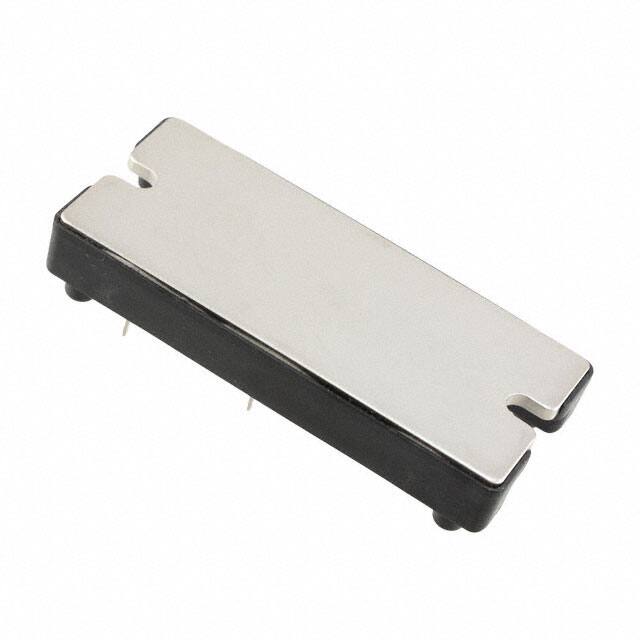

APTGT150DU120TG

Specifications

Igbt Type

Trench Field Stop

Collectoremitter Breakdown Voltage

1.2kV

Pin Sayısı

4

RoHS

Details

Element Configuration

Dual

Turn On Time

335 ns

Montaj Tipi

Chassis Mount

Lifecycle Status

Production (Last Updated: 2 months ago)

Polaritychannel Type

N-CHANNEL

Maximum Gate Emitter Voltage

20 V

RoHS Durumu

RoHS Compliant

Pin Sayısı

12

Case Connection

ISOLATED

Current Collector Cutoff Max

250μA

Maks. Çalışma Sıcaklığı

+ 125 C

Tedarikçi Cihaz Paketi

SP4

Max Power Dissipation

690W

Collectoremitter Saturation Voltage

1.7 V

Terminal Formu

UNSPECIFIED

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Montaj

Chassis Mount, Screw

Vceon Max Vge Ic

2.1V @ 15V, 150A

JESD-609 Kodu

e1

Paket

Bulk

Parça Durumu

Active

Transistor Application

POWER CONTROL

Continuous Collector Current

220

Qualification Status

Not Qualified

Collector Emitter Voltage Vceo

2.1V

Ntc Thermistor

Yes

Number Of Elements

2

Montaj Stili

Chassis Mount

Input Capacitance Cies Vce

10.7nF @ 25V

Gateemitter Leakage Current

400 nA

Kurşunsuz Kodu

yes

Terminal Kaplaması

TIN SILVER COPPER

Collector Emitter Voltage Vceo Max

1.2 kV

Temel Ürün No

APTGT150

Ürün Durumu

Active
