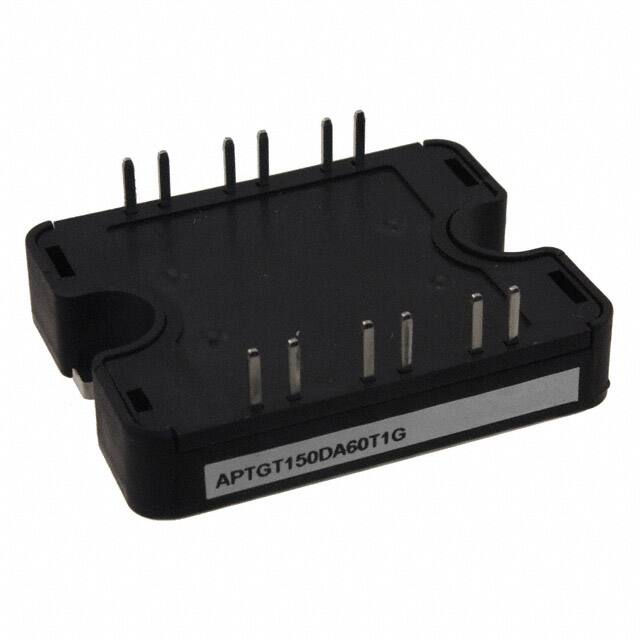

APTGT150DA60T1G

Specifications

Igbt Type

Trench Field Stop

Collectoremitter Breakdown Voltage

600V

Element Configuration

Single

Turn On Time

180 ns

RoHS

Details

Pin Sayısı

1

Yayın Yılı

2007

Maximum Gate Emitter Voltage

20 V

Pin Sayısı

12

RoHS Durumu

RoHS Compliant

Polaritychannel Type

N-CHANNEL

Lifecycle Status

Production (Last Updated: 2 months ago)

Montaj Tipi

Chassis Mount

Max Power Dissipation

480W

Maks. Çalışma Sıcaklığı

+ 100 C

Tedarikçi Cihaz Paketi

SP1

Current Collector Cutoff Max

250μA

Case Connection

ISOLATED

Vceon Max Vge Ic

1.9V @ 15V, 150A

Montaj

Chassis Mount, Screw

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Collectoremitter Saturation Voltage

1.5 V

Terminal Formu

THROUGH-HOLE

Paket

Bulk

Parça Durumu

Active

JESD-609 Kodu

e1

Qualification Status

Not Qualified

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo

1.9V

Transistor Application

MOTOR CONTROL

Continuous Collector Current

225

Montaj Stili

Chassis Mount

Number Of Elements

1

Temel Ürün No

APTGT150

Collector Emitter Voltage Vceo Max

600 V

Terminal Kaplaması

TIN SILVER COPPER

Kurşunsuz Kodu

yes

Gateemitter Leakage Current

400 nA

Input Capacitance Cies Vce

9.2nF @ 25V
