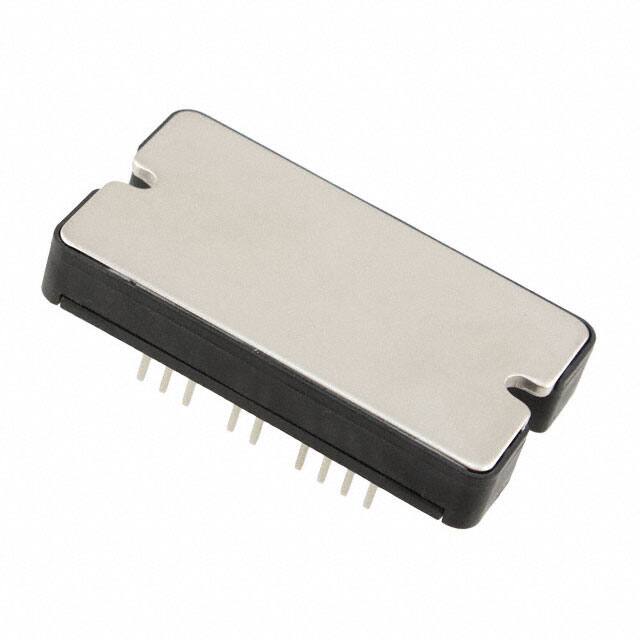

APTGT100TL60T3G

Specifications

Igbt Type

Trench Field Stop

Collectoremitter Breakdown Voltage

600V

Üretici Parça No

APTGT100TL60T3G

Package Shape

RECTANGULAR

Number Of Terminals

16

RoHS

Details

Maks. Çalışma Sıcaklığı

175 °C

Schedule B

8541290080, 8541500080/8541500080/8541500080/8541500080/8541500080

Pin Sayısı

32

Collectoremitter Voltagemax

600 V

Turnon Timenom Ton

180 ns

Turn On Time

180 ns

Lifecycle Status

Production (Last Updated: 2 months ago)

Polaritychannel Type

N-CHANNEL

Package Description

FLANGE MOUNT, R-XUFM-X16

Montaj Tipi

Chassis Mount

Maximum Gate Emitter Voltage

20 V

Pin Sayısı

25

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

+ 100 C

Tedarikçi Cihaz Paketi

SP3

Case Connection

ISOLATED

Current Collector Cutoff Max

250μA

Max Power Dissipation

340W

Turnoff Timenom Toff

370 ns

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Collectoremitter Saturation Voltage

1.5 V

Terminal Formu

UNSPECIFIED

Montaj

Chassis Mount, Screw

Radyasyon Dayanımı

No

Vceon Max Vge Ic

1.9V @ 15V, 100A

Collector Currentmax Ic

150 A

Paket

Bulk

Parça Durumu

Active

Transistor Application

POWER CONTROL

Continuous Collector Current

150

Power Dissipationmax Abs

340 W

Qualification Status

Not Qualified

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo

600V
