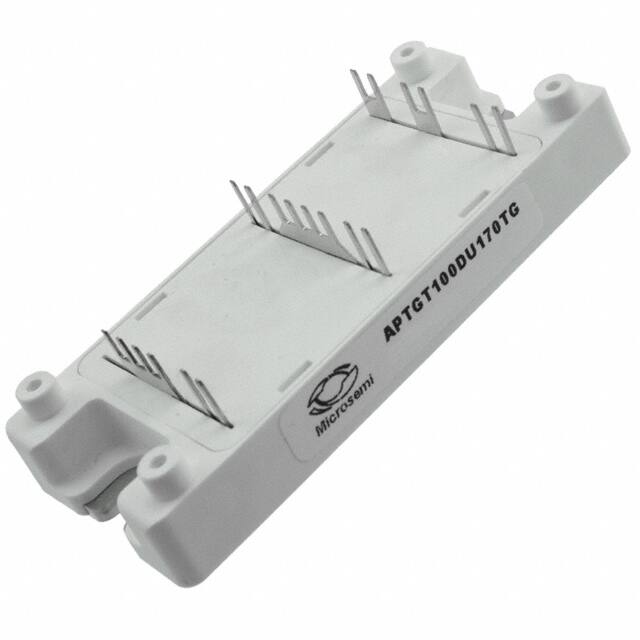

APTGT100DU170TG

Specifications

Turn Off Timenom Toff

1100 ns

Voltage Collector Emitter Breakdown Max

1700V

Input Capacitance

9nF

Terminal Sayısı

12

Jesd30 Code

R-XUFM-X12

Fabrika Paket Adedi

1

Continuous Collector Current At25 C

150 A

Minimum Operating Temperature

- 40 C

Additional Feature

AVALANCHE RATED

Çalışma Sıcaklığı

-40°C~150°C TJ

Transistor Element Material

SILICON

Configuration

Dual, Common Source

Min. Çalışma Sıcaklığı

-40 °C

Power Max

560W

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

36 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Pd Power Dissipation

560 W

Terminal Pozisyonu

UPPER

Kurşunsuz Kodu

yes

Gateemitter Leakage Current

400 nA

Input Capacitance Cies Vce

9nF @ 25V

Temel Ürün No

APTGT100

Terminal Kaplaması

TIN SILVER COPPER

Collector Emitter Voltage Vceo Max

1700 V

Kılıf / Paket

SP4

Birim Ağırlık

3.880136 oz

Vcesatmax

2.4 V

Ürün Durumu

Active

Currentcollector Ic Max

150 A

Input

Standard

Max Collector Current

150A

Continuous Collector Current

150

Transistor Application

POWER CONTROL

Qualification Status

Not Qualified

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo

1.7kV

Montaj Stili

Chassis Mount

Number Of Elements

2
