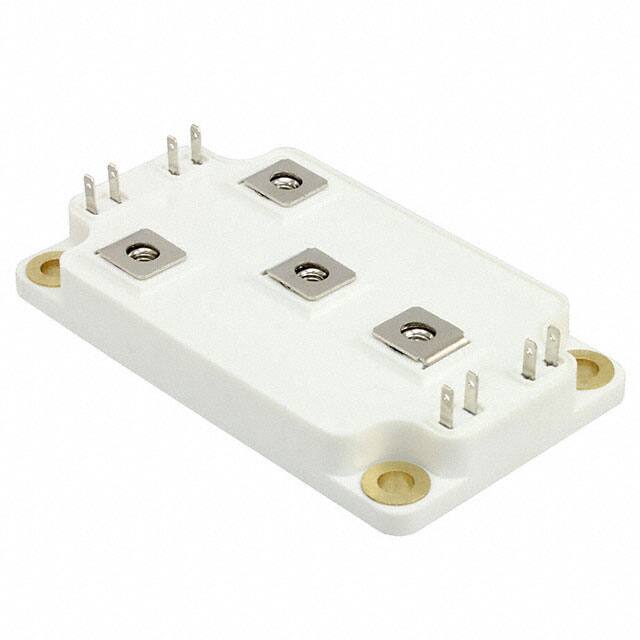

APTGLQ200HR120G

Specifications

Pin Sayısı

6

RoHS

Details

Igbt Type

Trench Field Stop

Collectoremitter Breakdown Voltage

1.2kV

Current Collector Cutoff Max

200μA

Turn On Delay Time

30 ns

Maks. Çalışma Sıcaklığı

+ 100 C

Tedarikçi Cihaz Paketi

SP6

Max Power Dissipation

1kW

Montaj Tipi

Through Hole

Maximum Gate Emitter Voltage

20 V

RoHS Durumu

RoHS Compliant

Yayın Yılı

2012

Paket

Bulk

Parça Durumu

Active

Collectoremitter Saturation Voltage

2.05 V, 1.5 V

Vceon Max Vge Ic

2.4V @ 15V, 160A

Montaj

Through Hole

Number Of Elements

1

Montaj Stili

Chassis Mount

Continuous Collector Current

200

Ntc Thermistor

No

Collector Emitter Voltage Vceo

2.4V

Kurşunsuz

Lead Free

Ürün Durumu

Active

Kılıf / Paket

SP6

Birim Ağırlık

3.880136 oz

Input

Standard

Max Collector Current

300A

Turn Off Delay Time

290 ns

Currentcollector Ic Max

300 A

Input Capacitance Cies Vce

9.2nF @ 25V

Gateemitter Leakage Current

480 nA, 400 nA

Collector Emitter Voltage Vceo Max

1.2 kV, 600 V

Temel Ürün No

APTGLQ200

Pd Power Dissipation

1 kW, 340 W

Ambalaj

Tube

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

22 Weeks
