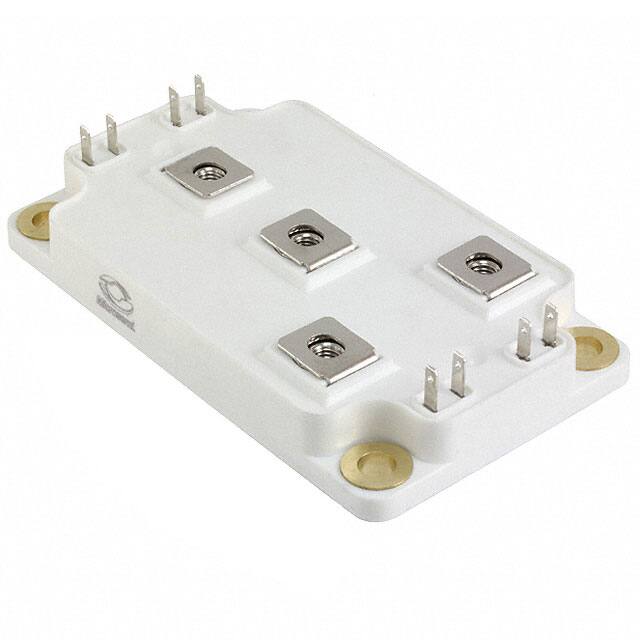

APTGLQ200H120G

Specifications

Gateemitter Voltagemax

20V

Power Max

1000W

Vceon Max Vge Ic

2.4V @ 15V, 200A

Montaj

Chassis Mount

Configuration

Full Bridge

Çalışma Sıcaklığı

-40°C~175°C TJ

Collectoremitter Saturation Voltage

2.05 V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

36 Weeks

Paket

Bulk

Parça Durumu

Active

Collector Emitter Voltage Vceo

2.4V

Minimum Operating Temperature

- 40 C

Continuous Collector Current At25 C

350 A

Ntc Thermistor

No

Input Capacitance

12.3nF

Voltage Collector Emitter Breakdown Max

1200V

Number Of Elements

1

Montaj Stili

Chassis Mount

Collector Emitter Voltage Vceo Max

1.2 kV

Temel Ürün No

APTGLQ200

Input Capacitance Cies Vce

12.3nF @ 25V

Collectoremitter Breakdown Voltage

1.2kV

Igbt Type

Trench Field Stop

Input

Standard

Max Collector Current

350A

Currentcollector Ic Max

350 A

Turn Off Delay Time

290 ns

Kurşunsuz

Lead Free

Ürün Durumu

Active

Pin Sayısı

6

Kılıf / Paket

SP6

RoHS Durumu

RoHS Compliant

Yayın Yılı

2012

Montaj Tipi

Chassis Mount

Max Power Dissipation

1kW

Current Collector Cutoff Max

100μA

Pd Power Dissipation

1 kW

Turn On Delay Time

30 ns

Maks. Çalışma Sıcaklığı

+ 100 C
